Ultrastar DC HC300 Series

Medium Capacity for High Access-Density Requirements
Ultrastar DC HC300 Series

OVERVIEW

Delivering Economics and Access Speed to Data Center Applications and Workloads

As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e3 sector size.

main-features-ultrastar-dc-hc300-western-digital product-hero-image-ultrastar-dc-hc300-western-digital ultrastar-dc-hc310-6tb-left-western-digital ultrastar-dc-hc310-western-digital ultrastar-dc-hc320-8tb-left-western-digital product-hero-image-ultrastar-dc-hc300-western-digital2 Ultrastar-dc-hc330-standing-L-cover-10TB

Solves Access Density Challenges

Economical Capacity

4TB, 6TB, 8TB, and 10TB models for lower acquisition cost

High Performance

Fast data access with 7200 RPM speed, transferring up to 255 MB/s

Drop-In Ready

SAS and SATA options support traditional servers and storage

Request a quick Western Digital's Quote

To receive a quick quote for your desired products please call us at +1 650-320-8000.
You can also email us at 'sales@asacomputers.com.com' or simply click on the 'Request Quote' button. Request Quote

Highlights

  • 10TB capacity point supports both OEM & cloud deployments
  • Best in Class sustained trasfer rate up to 273MB/s
  • Advanced Format 512e models
  • Self-Encrypting Drive options
  • 5-year limited warranty

Applications and Workload

  • Distributed file systems, like Apache Hadoop®, to support Big Data analytics
  • Rack-mounted storage enclosures
  • Server based distributed storage systems.
  • Direct & Network Attached Storage (DAS & NAS)
  • RAID arrays

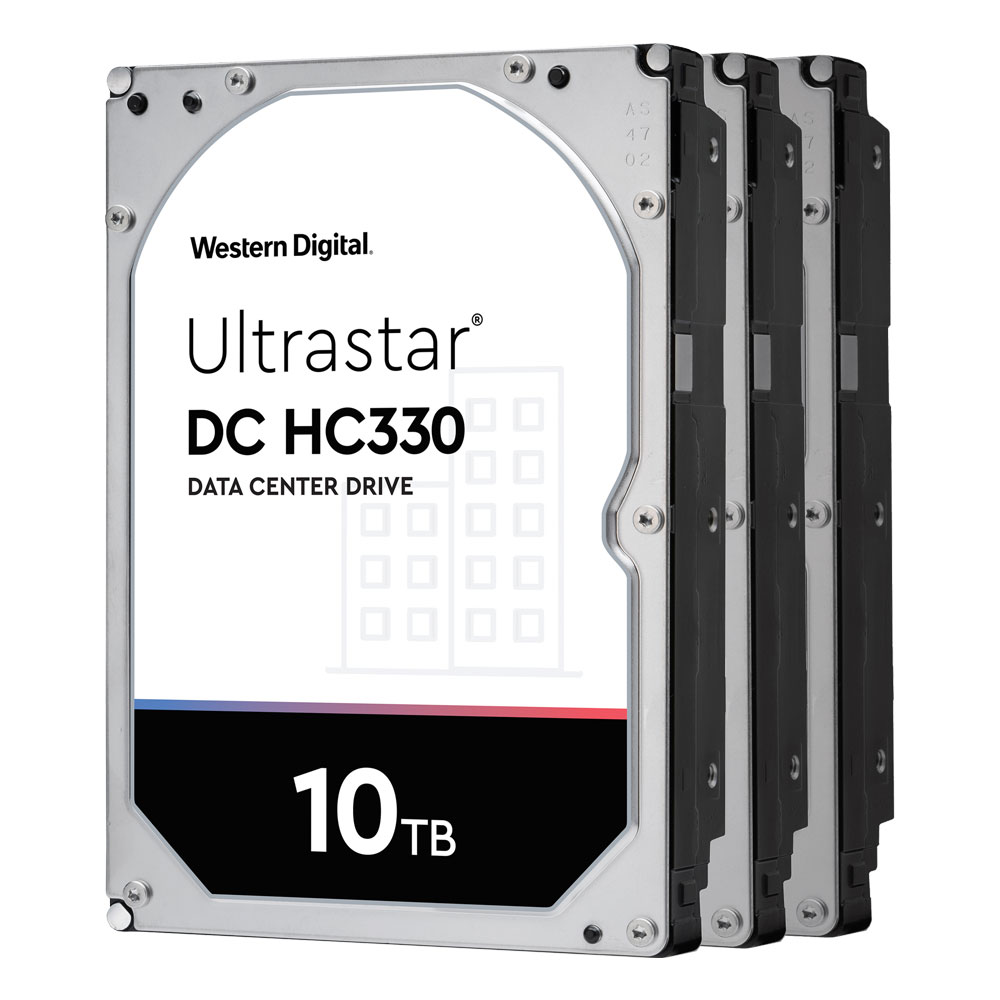

Ultrastar DC HC300 Series 10TB

Higher Capacity

10TB, the highest capacity available in our Ultrastar DC HC300 series

Access Speed

Process data quickly with sustained transfer rates up to 255 MB/s

Reliable

Enterprise-class 2M hours MTBF with 5-year limited warranty

SATA Models
SAS Models
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
10TB
10TB
Form Factor
3.5-inch
3.5-inch
Format: Sector size (bytes)
4Kn:
512e:4

4Kn: 4096
512e: 512
4Kn: 4096, 4104,4160, 4224
512e: 512, 520, 528
Max areal density (Gbits/sq. in., max)
869
869
Performance
Data Buffer5
256
256
Rotational Speed (RPM)
7200
7200
Latency Average (ms)
4.16
4.16
Interface Transfer Rate (MB/sec, max)
600
1200
Sustained Transfer Rate (MB/sec, typ.)
(MiB/s, typical)
(MB/s, typical)6


Up to 260
Up to 273
Up to 260
Up to 273
Seek Time (read, ms, typical)
7.6 (Read), 8.0 (Write)
7.6 (Read), 8.0 (Write)
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours)
2
2
Load/Unload Cycles
600,000 (at 40°C)
600,000 (at 40°C)
Availability (hrs/day x days/wk)
24x7
24x7
Reliability - Warranty
5 years
5 years
Acoustics
Idle (Bels)
2.9 (Idle), 3.6 (Operating)
2.9 (Idle), 3.6 (Operating)
Power
Requirement
+5 VDC, +12 VDC
+5 VDC, +12 VDC
Operating (W, typical)
9.1
11
Low Power Idle (W, avg)
7.1
7.7
Power Consump. Efficiency Index (W/GB)
1.2W/TB / 0.0012W/GB (6TB)
1.3W/TB / 0.0013W/GB (6TB)
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
715
715
Environmental (operating)
Ambient Temperature
5° to 60°C
5° to 60°C
Shock (half-sine wave)
70
70
Vibration (5 to 500 Hz)
0.67 (XYZ)
0.67 (XYZ)
Environmental (non-operating)
Ambient Temperature
-40° to 70°C
-40° to 70°C
Shock (half-sine wave)
300
300
Vibration (5 to 500 Hz)
1.04 (XYZ)
1.04 (XYZ)

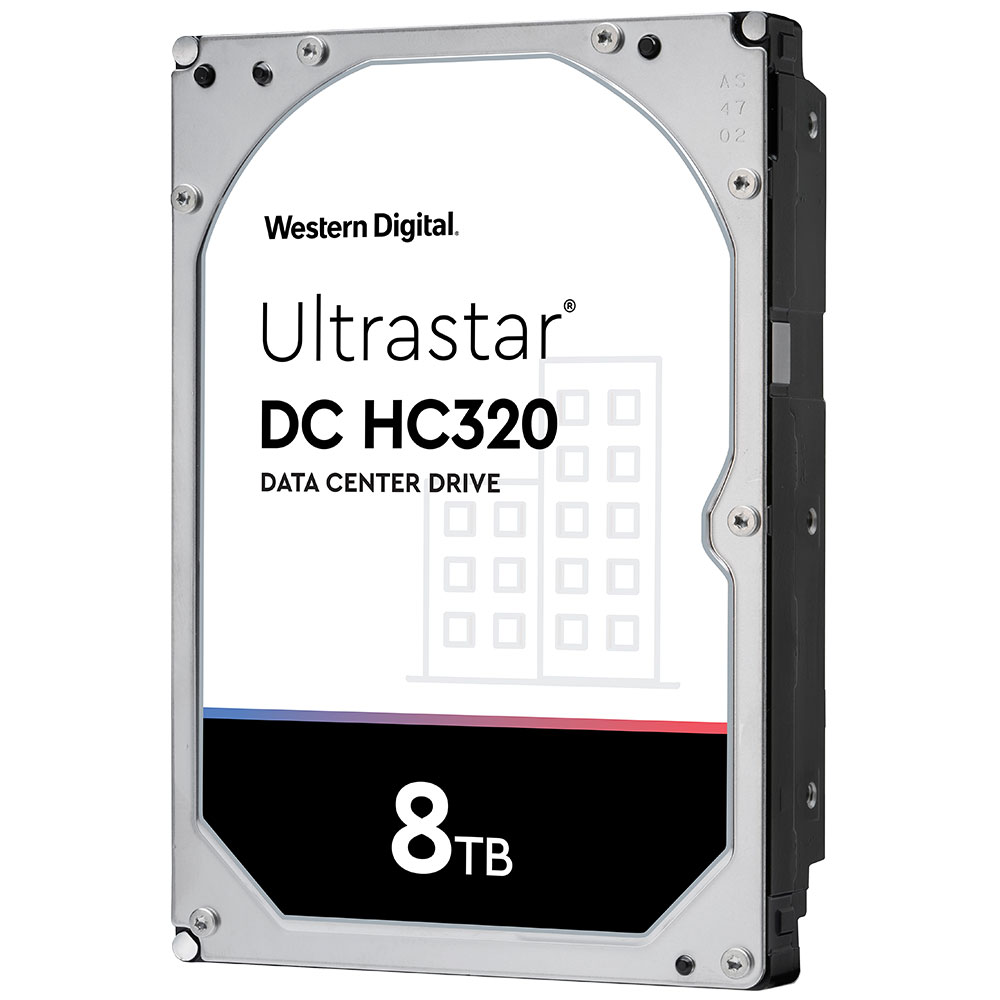

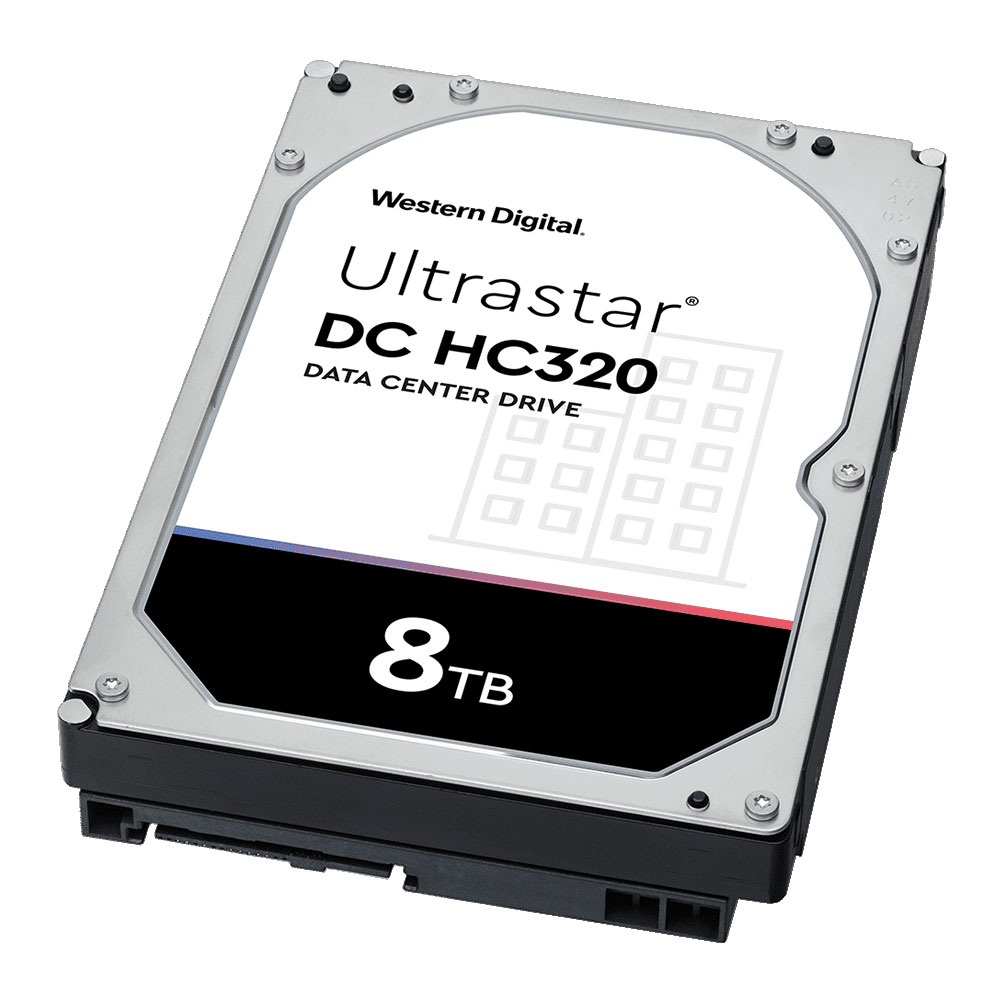

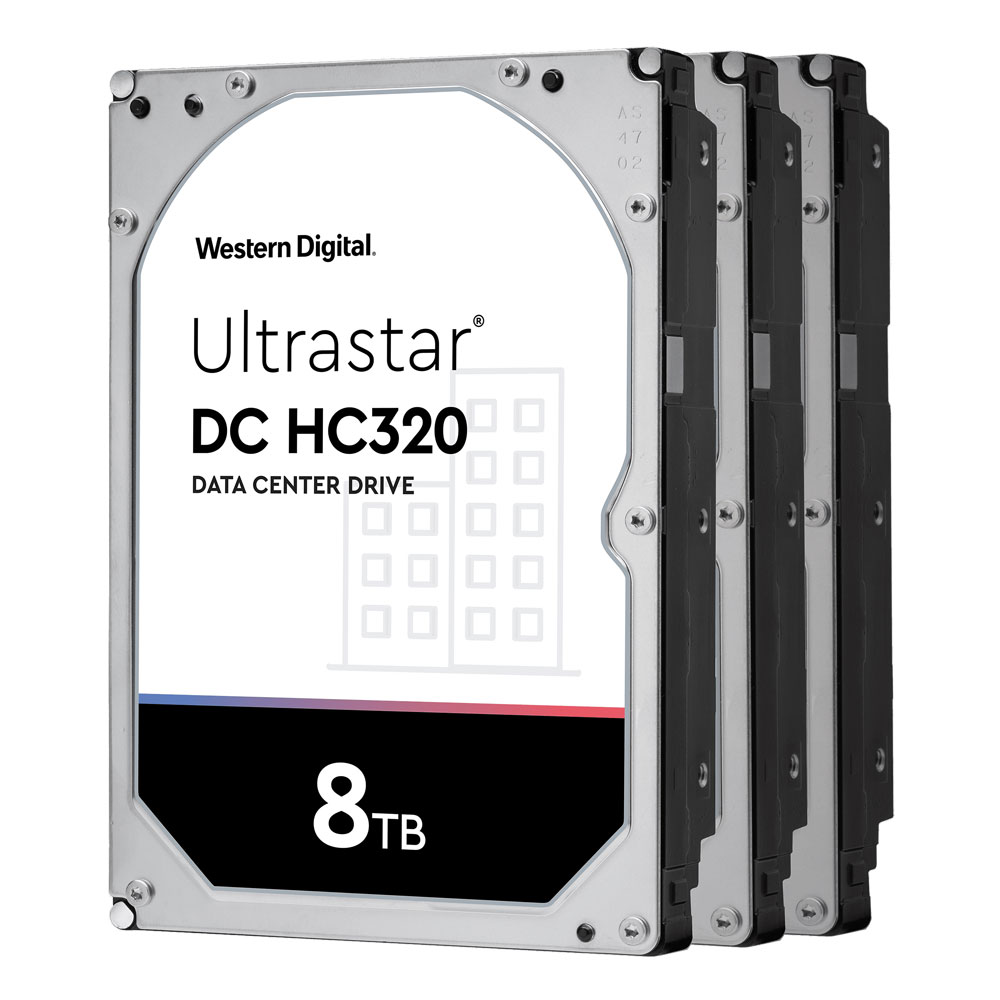

Ultrastar DC HC300 Series 8TB

Intermediate Capacity

8TB model delivers a value based mid-cap option

Access Speed

Process data quickly with sustained transfer rates up to 255 MB/s

Reliable

Enterprise-class 2M hours MTBF with 5-year limited warranty

SATA Models
SAS Models
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
8TB
8TB
Format2: Sector size (bytes)
4Kn:
512e:4

4Kn: 4096
512e: 512s
4Kn: 4096, 4112, 4160, 4224
512e: 512, 520, 528
Performance
Data Buffer3
256
256
Rotational Speed (RPM)
7200
7200
Interface Transfer Rate (MB/sec, max)
600
1200
Sustained Transfer Rate
(MiB/s, typical)
(MB/s, typical)4

Up to 243
Up to 255
Up to 243
Up to 255
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours)5
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
Load/Unload cycles (at 40°C)
600,000
600,000
Availability (hrs/day x days/wk)
24x7
24x7
Reliability - Warranty
5 years
5 years
Acoustics
Idle/Operating (Bels, typical)
2.9/3.6
2.9/3.6
Power
Requirement
+5 VDC, +12 VDC
+5 VDC, +12 VDC
Operating (W, typical)6
8.8
12.8
Idle (W)
7.5
8.4
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
715
715
Environmental (operating)
Ambient Temperature
5° to 60°C
5° to 60°C
Shock (half-sine wave, 2ms, G)
70
70
Environmental (non-operating)
Ambient Temperature
-40° to 70°C
-40° to 70°C
Shock (half-sine wave)
300
300
Vibration (5 to 500 Hz)
1.04 (XYZ)
1.04 (XYZ)

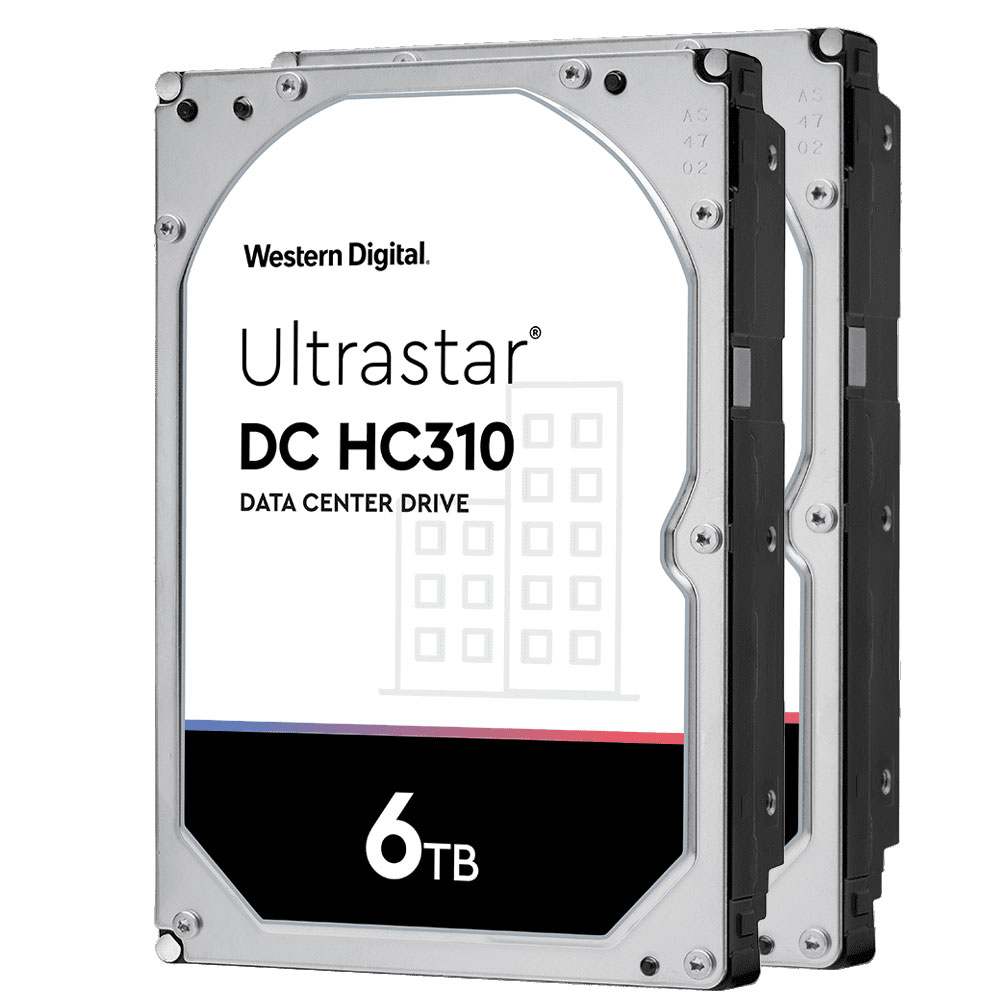

Ultrastar DC HC300 Series 6TB

Lower Capacity

6TB and 4TB models deliver economical capacity options

Access Speed

Process data quickly with sustained transfer rates up to 255 MB/s for Advanced Format models

Reliable

Enterprise-class 2M hours MTBF with 5-year limited warranty

SATA Models
SAS Models
General
Interface
SATA 6Gb/s
SAS 12Gb/s
Capacity1
6TB / 4TB
6TB / 4TB
Format2: Sector size (bytes)
4Kn:
512e:4

4Kn: 4096
512e: 512
4Kn: 4096, 4112, 4160, 4224
512e: 512, 520, 528
Performance
Data Buffer3
256
256
Rotational Speed (RPM)
7200
7200
Interface Transfer Rate (MB/sec, max)
600
1200
Sustained Transfer Rate

(MiB/s, typical)
(MB/s, typical)4

Up to 243
Up to 255
222
233
Up to 243
Up to 255
222
233
Reliability
Error Rate (non-recoverable, bits read)
1 in 1015
1 in 1015
MTBF (M hours)5
2
2
Annualized Failure Rate (AFR)
0.44%
0.44%
Load/Unload cycles (at 40°C)
600,000
600,000
Availability (hrs/day x days/wk)
24x7
24x7
Reliability - Warranty
5 years
5 years
Acoustics
Idle/Operating (Bels, typical)
2.9/3.6
2.9/3.6
Power
Requirement
+5 VDC, +12 VDC
+5 VDC, +12 VDC
Operating (W, typical)6
7.0
12.1
Idle (W)7
5.9
7.0
Physical Size
Z-Height (mm)
26.1
26.1
Dimensions (width x depth, mm)
101.6 (+/-0.25) x 147
101.6 (+/-0.25) x 147
Weight (g, max)
715
715
Environmental (operating)
Ambient Temperature
5° to 60°C
5° to 60°C
Shock (half-sine wave, 2ms, G)
70
70
Vibration (G RMS, 5 to 500 Hz)
0.67 (XYZ)
0.67 (XYZ)
Environmental (non-operating)
Ambient Temperature
-40° to 70°C
-40° to 70°C
Shock (half-sine wave, 2ms, G)
300
300
Random Vibration (G RMS 2 to 200 Hz)
1.04 (XYZ)
1.04 (XYZ)
Disclosure

1. One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting.
2. 512e models can be converted to 4Kn format
3. MTBF and AFR specifications are based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions for this drive model. MTBF and AFR ratings do not predict an individual drive's reliability and do not constitute a warranty.
4. Advanced Format drive: 4K (4096-byte)
5. Portion of buffer capacity used for drive 6. Projected performance. Actual performance may vary. 1MiB = 1,048,576 bytes (220), 1MB = 1,000,000 bytes (106)
7. Excludes command overhead
8. SATA models: 8K Queue Depth = 1 @ 40 IOPS, SAS models: 4K Queue Depth = 4 @ Max IOPS
9. Idle specification is based on use of Idle_A
