Submer

Introduction

ASA Computers is now a partner of Submer to offer the highest quality, safest, and most cost effective immersion cooling solutions to the market.

Submer Founded in 2015, the company provides best-in-class solutions for HPC, hyperscale, data centers, Edge, AI, DL and blockchain applications. Together Submer allows data centers around the world to harness the power of immersion cooling to reduce consumption, costs and latency while simultaneously increasing deployment speed and computer density per sqm. Submer is committed to providing the industry with state of the art technological solutions that are innovative and smart.

We support organizations to make progress on environmental sustainability goals, reduce their company's carbon footprint and whilst making progress on broader business objectives of improving profitability and operational efficiency.

We believe a better world is possible by leveraging cleaner technologies that on top deliver unprecedented TCO metrics. And we also "walk the talk"! So, for each SmartPod you buy we'll make sure 2 trees will be planted to fight deforestation.

Submer Ecosystems

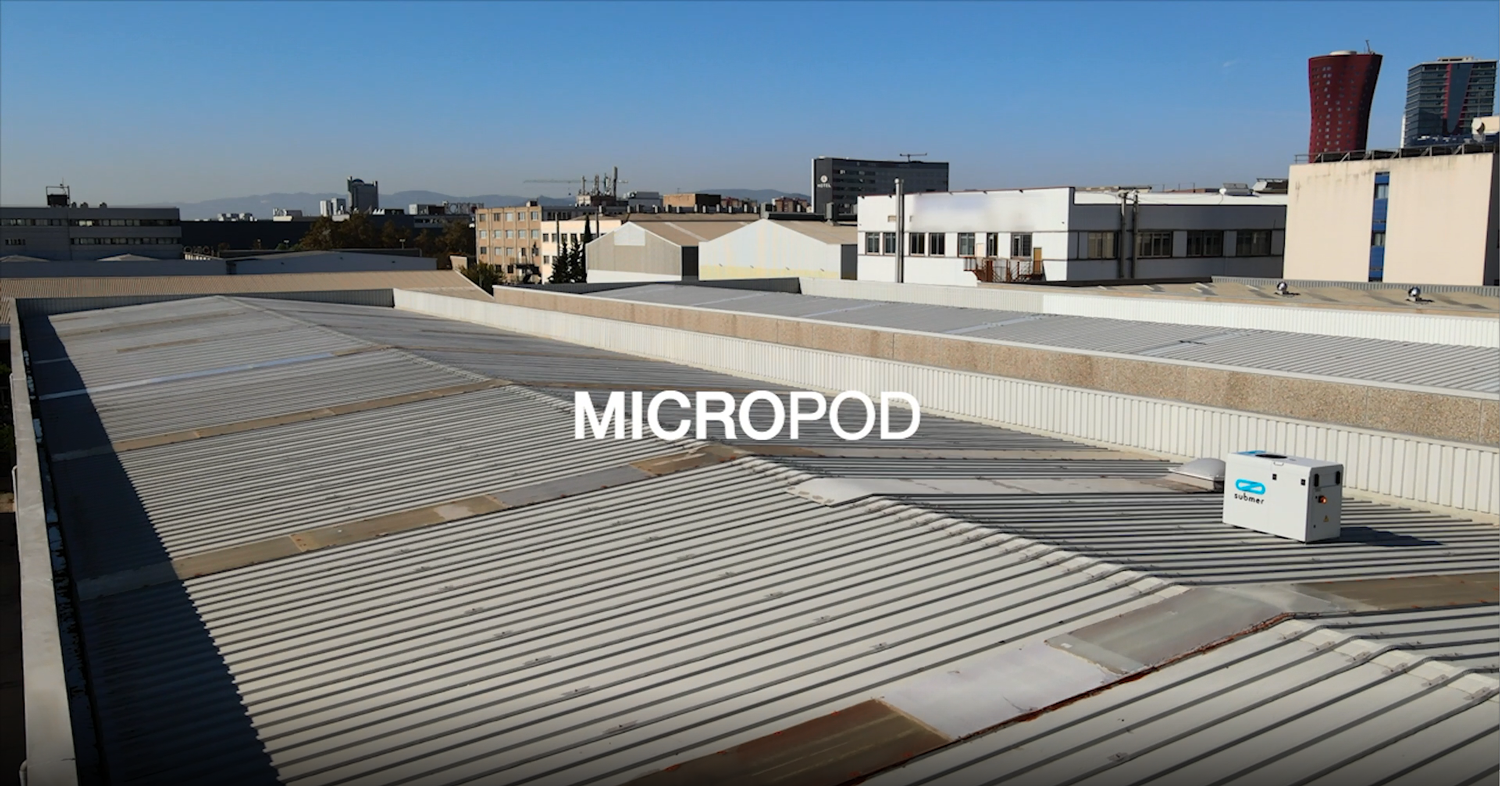

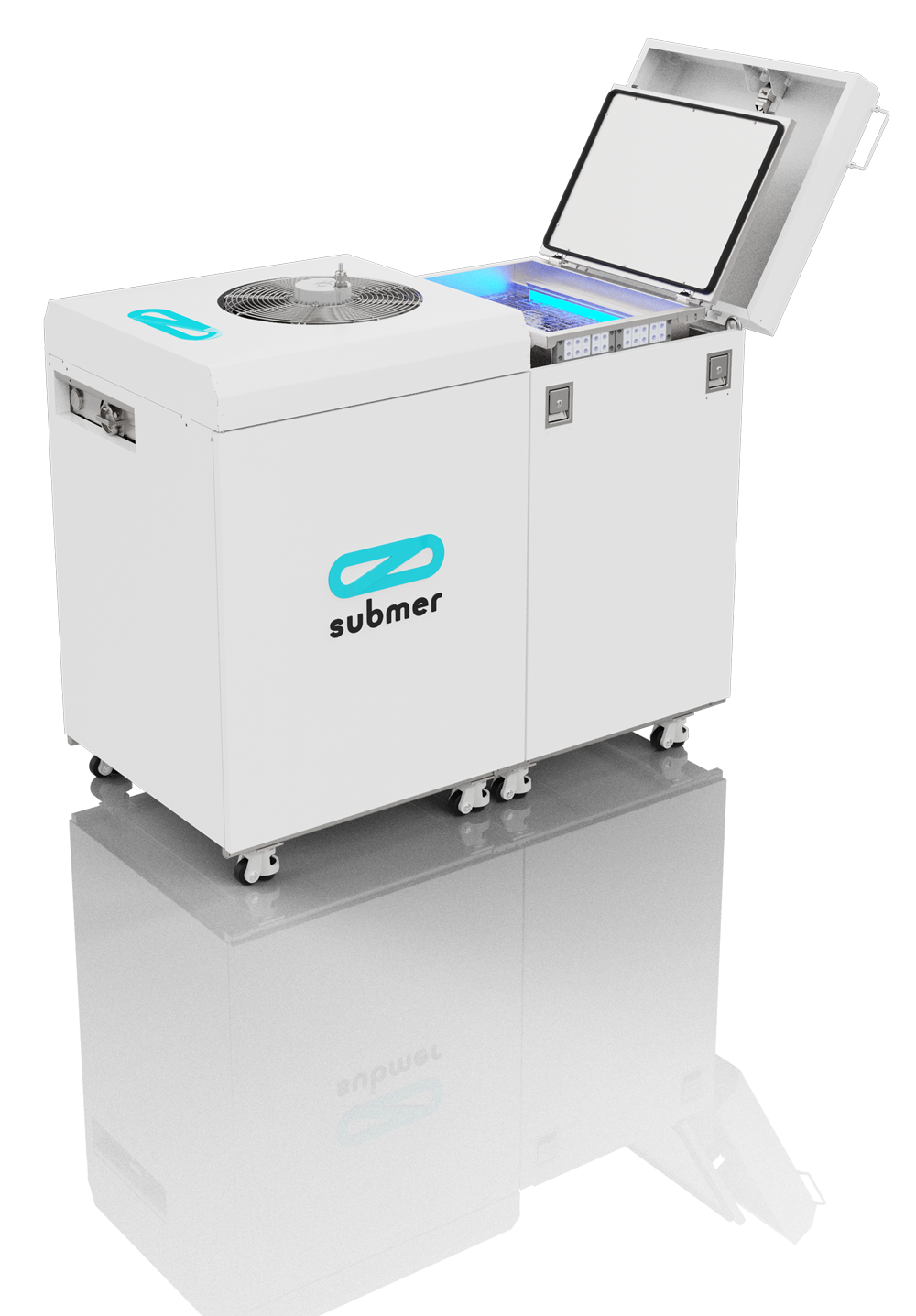

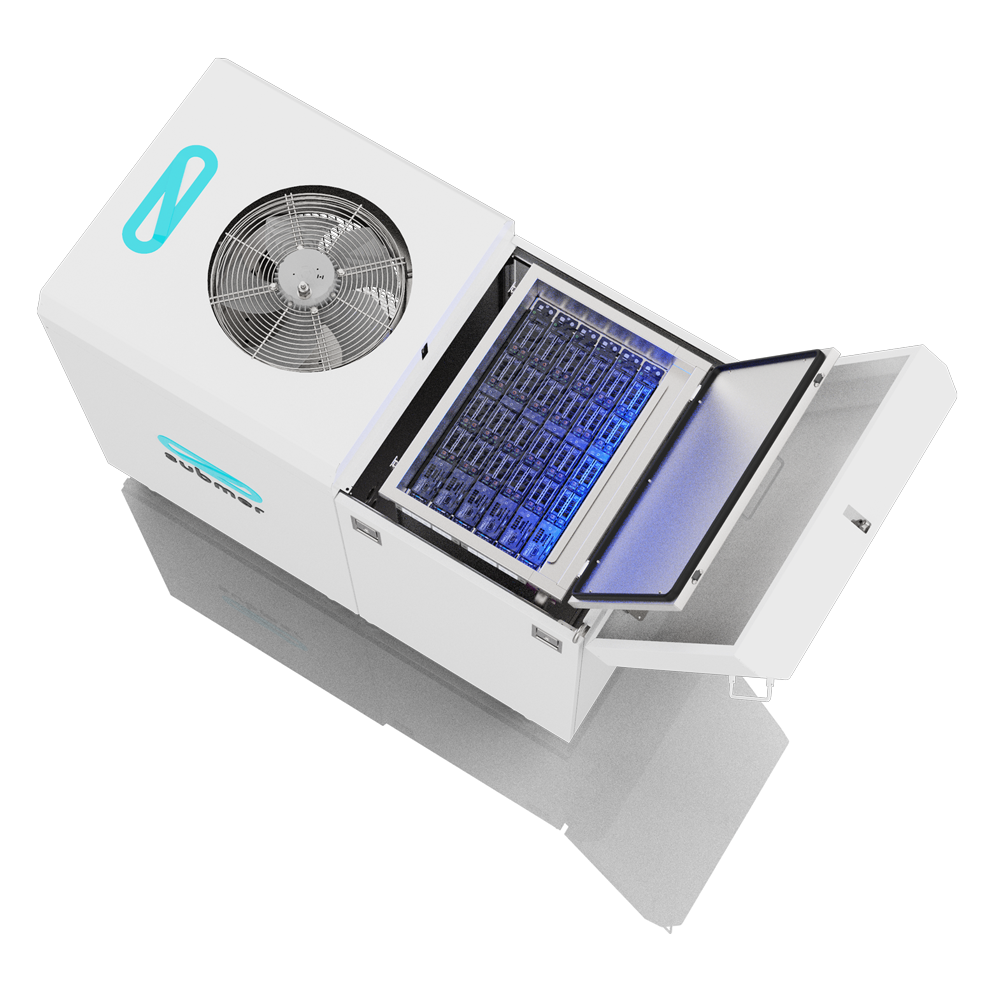

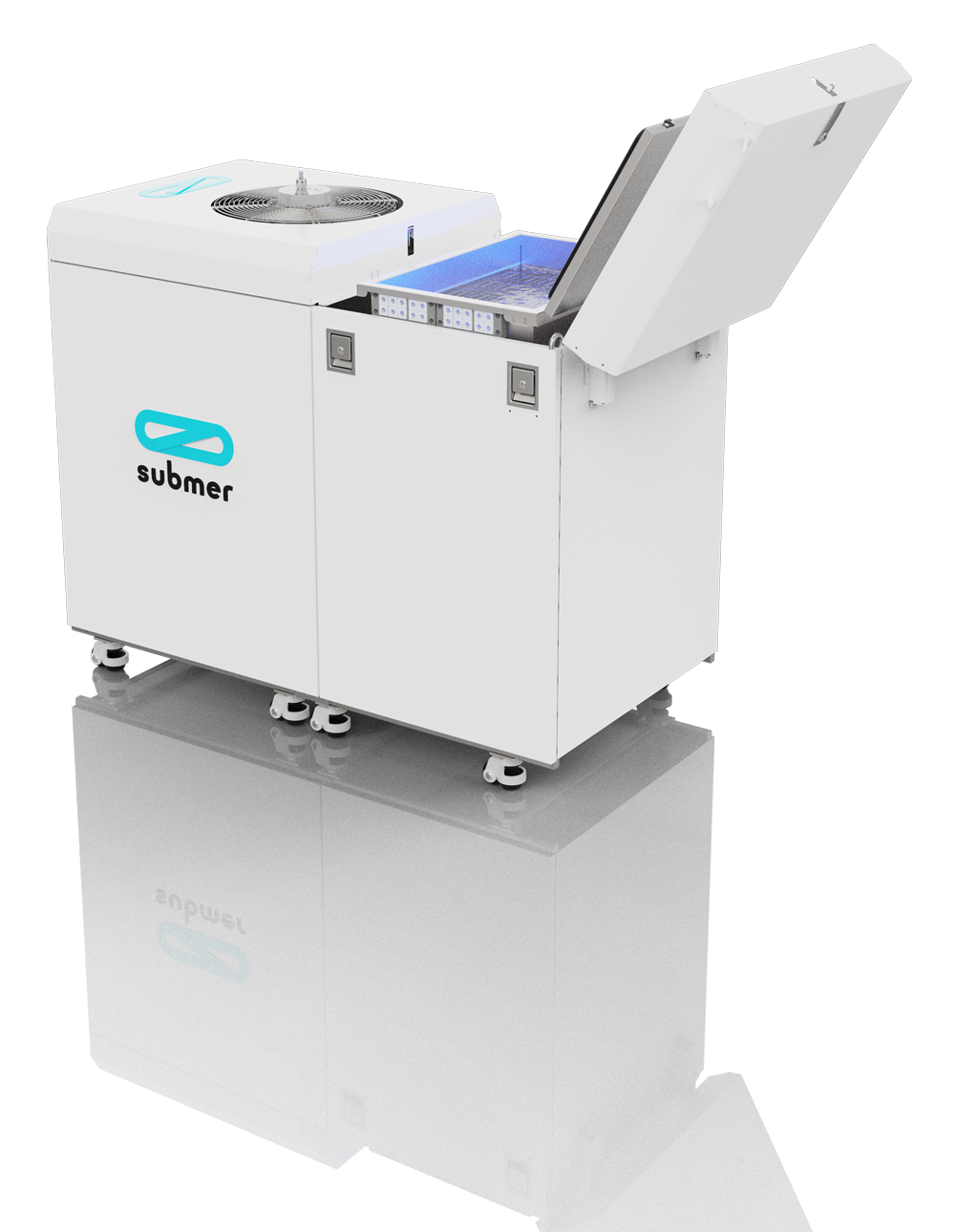

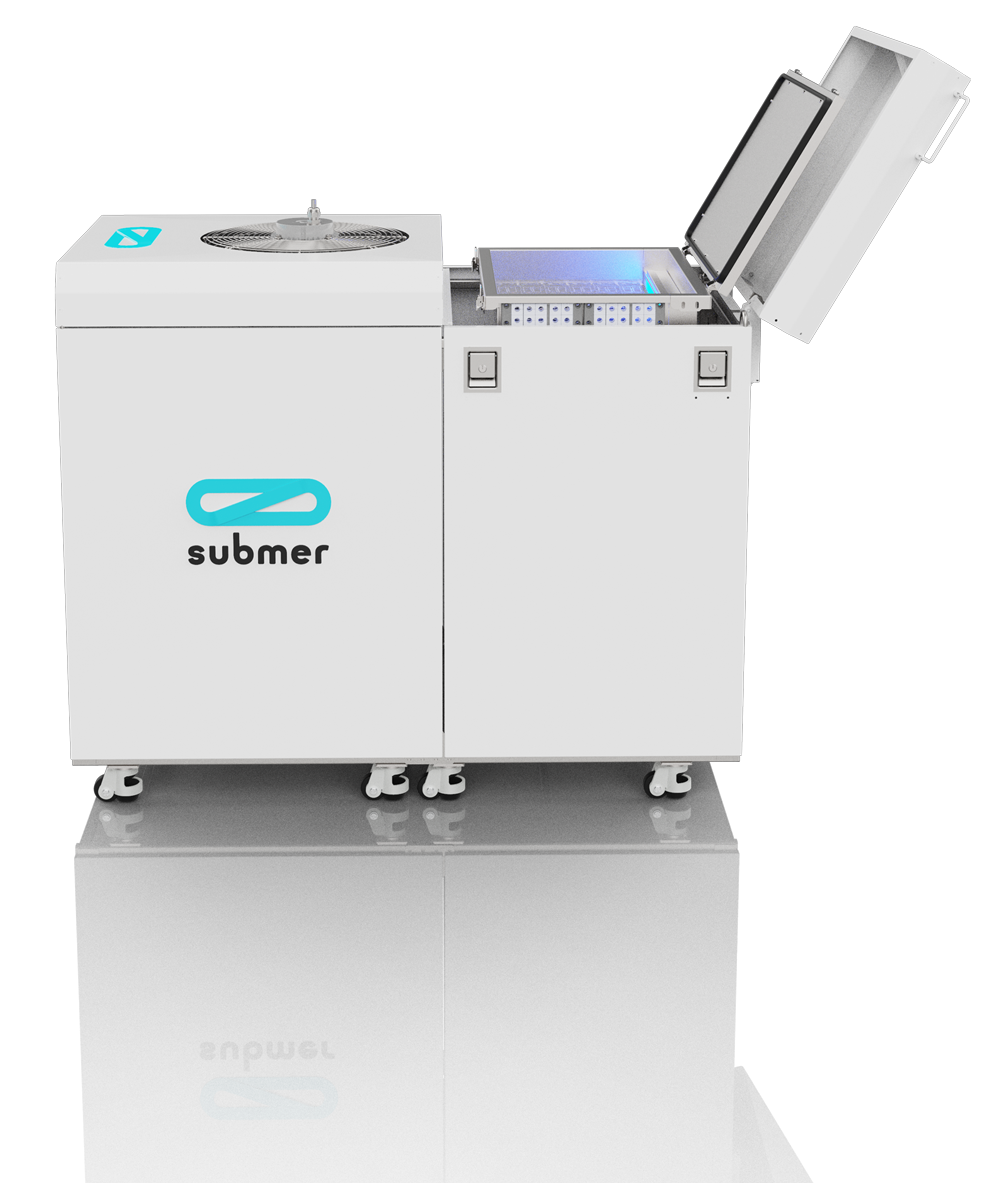

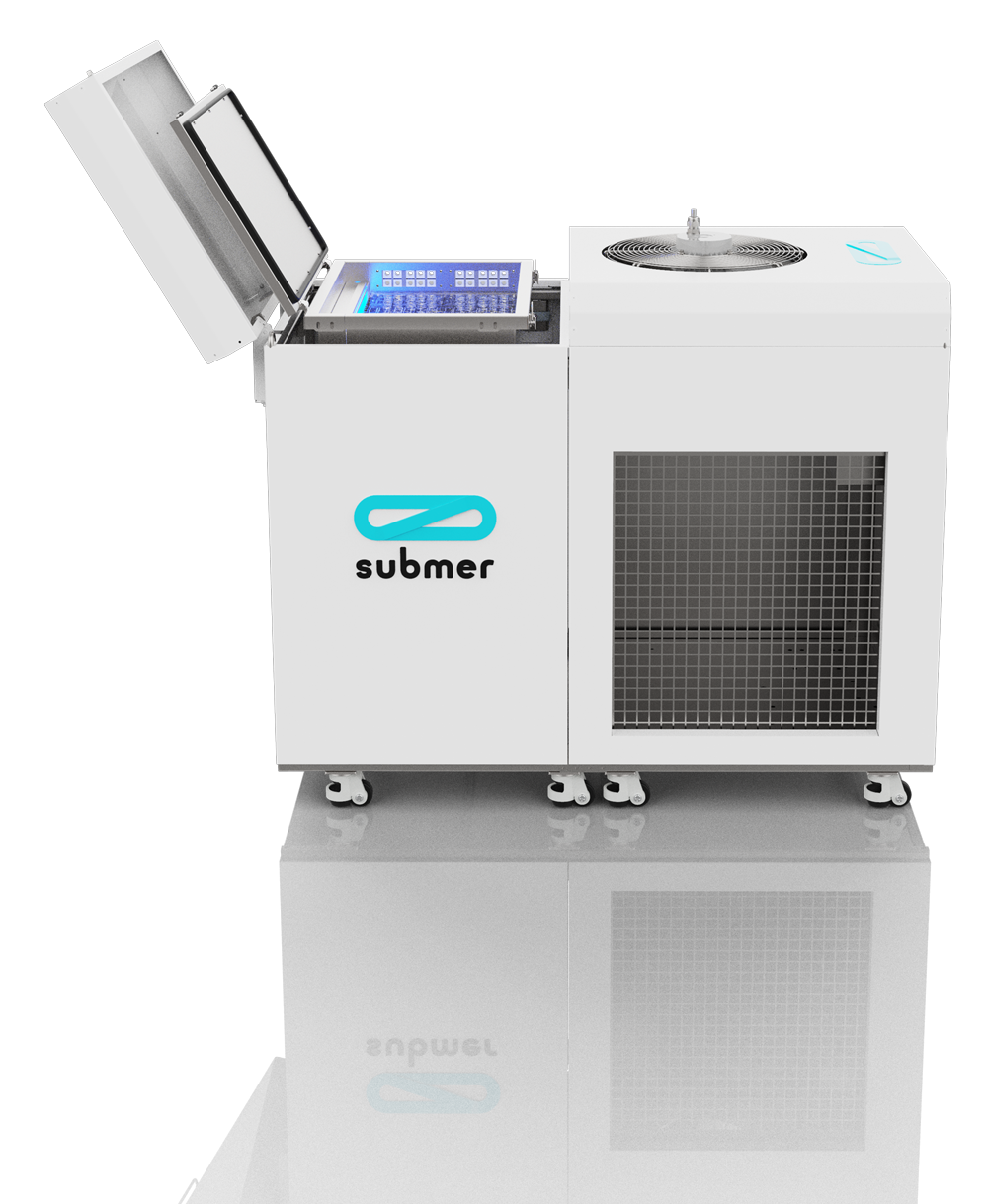

MicroPod

The Smartest Solution for Edge & Cloud Computing

The MicroPod is the latest addition to Submer's Ecosystem of solutions. It delivers unprecedented high density and efficient infrastructure anywhere.

The MicroPod is purpose-built to adapt to your needs:

Fast deployment: just hook to network and power.
Ready to be placed in any location, including direct sunlight.
Ruggedised and tamper-proof.
Lift and shift capabilities.
Protects IT hardware from environmental influence.
Easy install in existing telco cabinets, huts or containers.
Maximum use of space. The MicroPod can be placed in previously unusable space.
Connected with quick-disconnect hoses

Technical Specs
Up to 7 Kw of heat dissipation	6U of 19" or 21" Open Compute (OCP)
Compatible with major HW vendors and standards	Integrated secondary cooling
Integrated or split configuration possible	Ready for outdoor operations (IP67 water/dust proof)

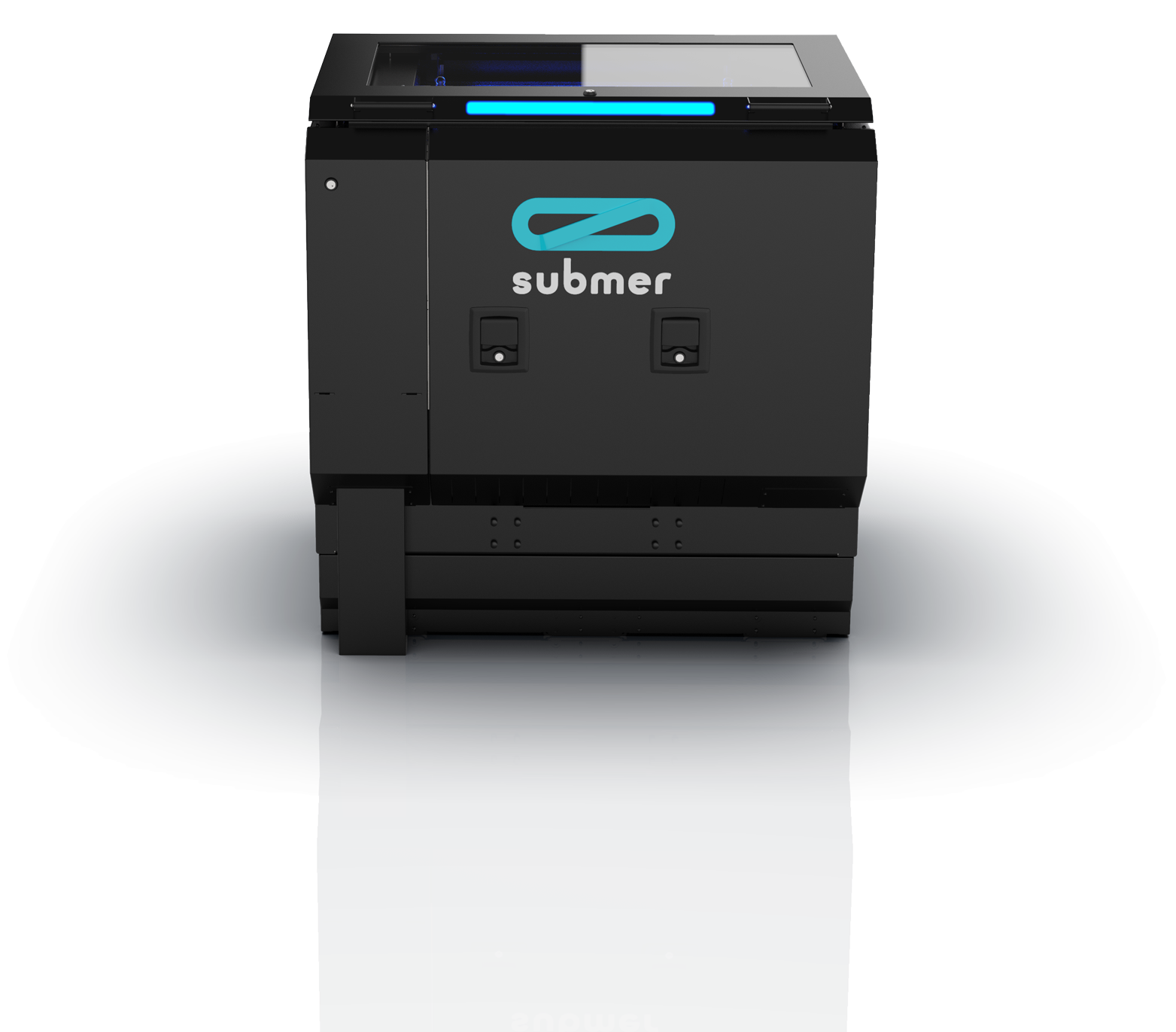

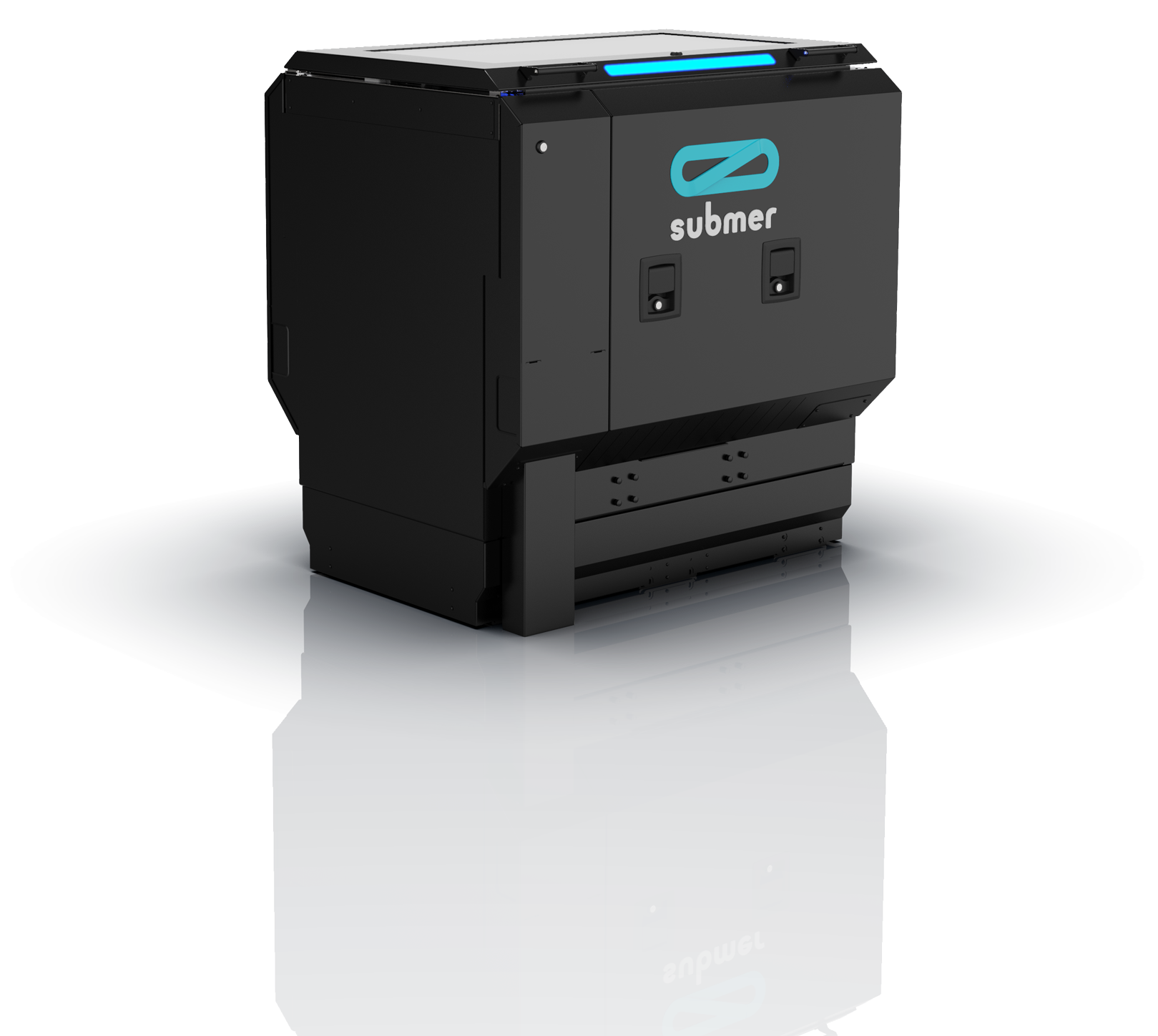

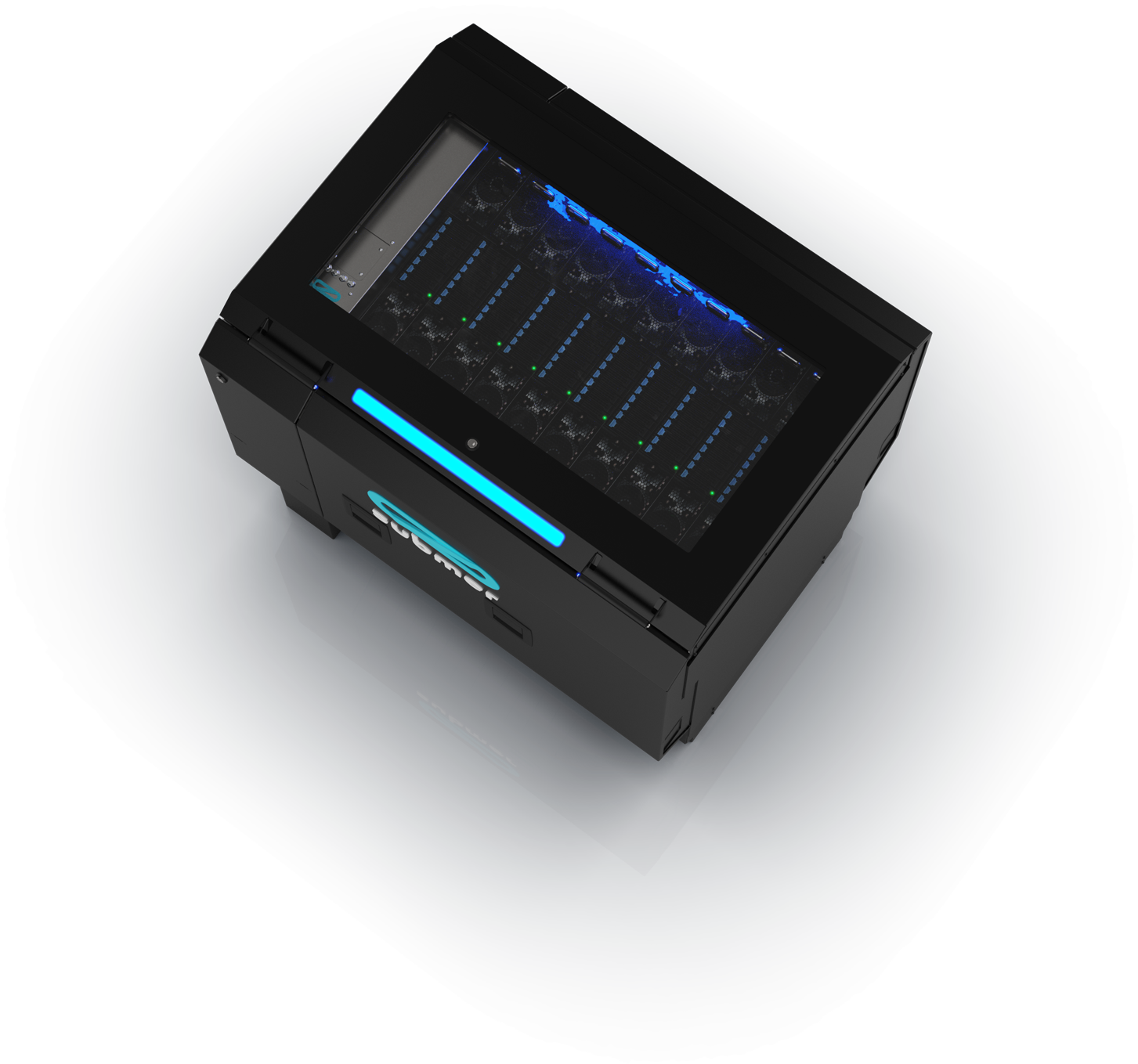

SmartPodX

Immersion Cooling Made Practical

Up to 100 kW of heat dissipation
44U/42OU or 21U/19OU, 19" or 21" Open Compute (OCP)
Compatible with major HW vendors and standards
Local and remote management interfaces
Simplified maintenance
Submer Cloud (remote monitoring & management)
DCIM API - integrate with monitoring tools
Compact form factor easily scalable
Tier III and Tier IV compatible
Vertically stackable configurations available
Optional IP65 (water/dust proof)
Bus bar at the bottom delivering DC Current - 12Vdc / 48Vdc
Hot-Swappable Power Shelf - Have a look here

Technical Specs
Heat dissipation capacity (kW)	50 kW
Double tank IT gear capacity (U, OU) Note: OCP's power shelf/ves (3 U each) is/are excluded.	21 U 19 OU
IMaximum power consumption (W)	850 W
Dimensions, L x W x H (cm, in)	120 (L) x 93 (W) x 121 (H) cm 47 (L) x 37 (W) x 48 (H) in
Power supply options	(CE) 380-400 V 50 Hz / (UL) 208-230 V 60 Hz
Water supply inlet temperature, recommended less or equal to (°C, °F)	32 °C / 89.6 °F
Water supply outlet temperature, expected (°C, °F)	5 °C / 9 °F higher than selected water inlet

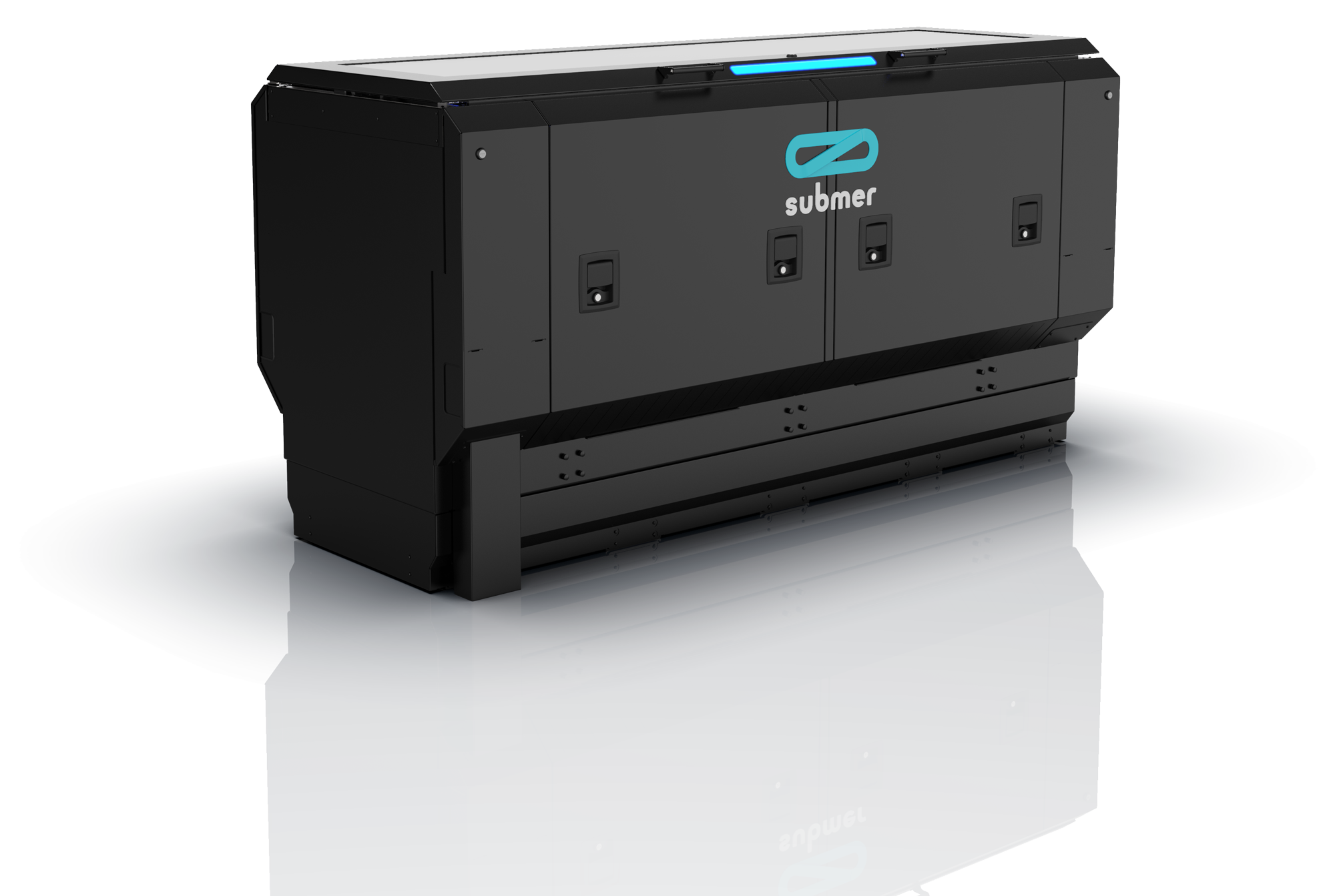

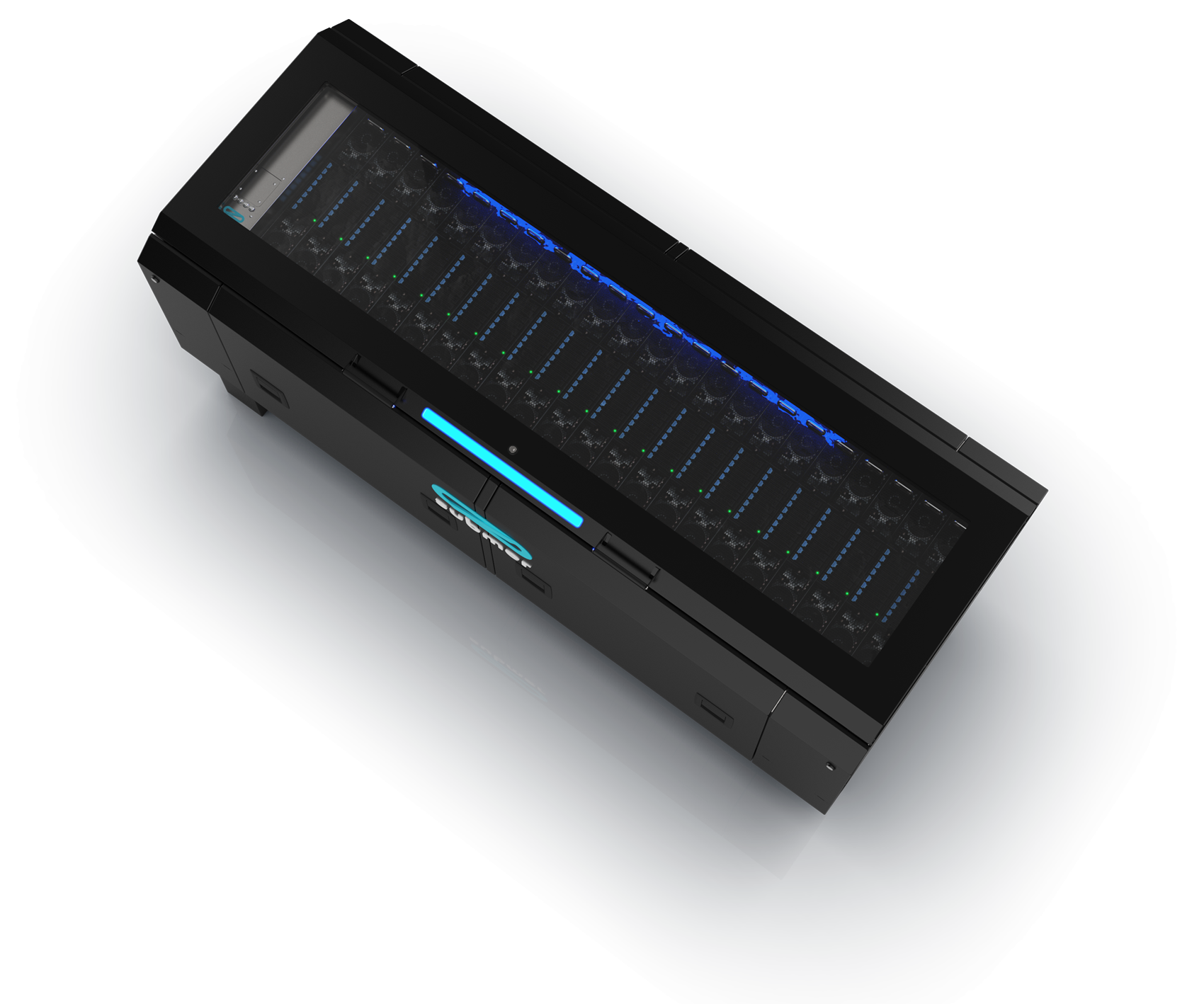

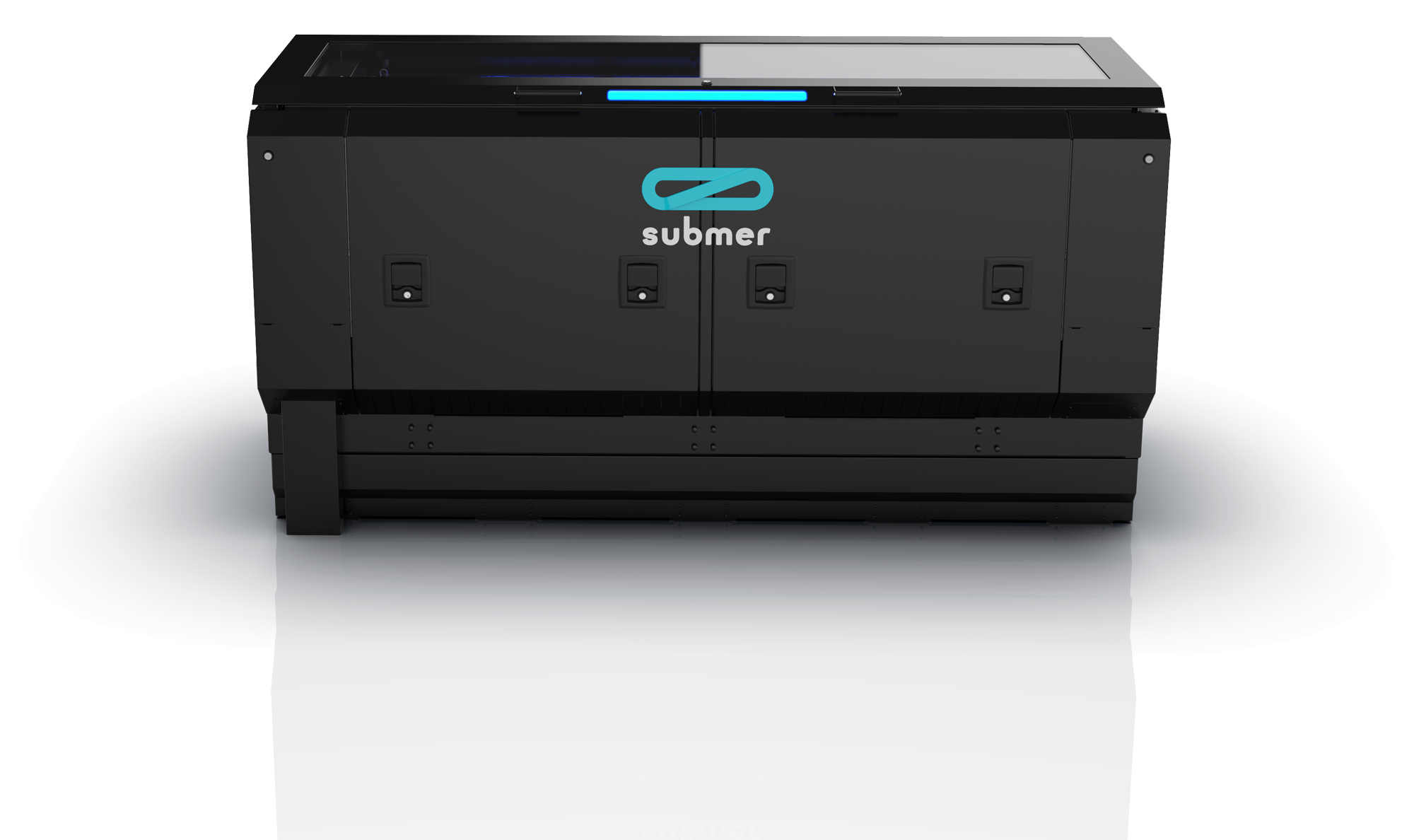

SmartPodXL

Unrivalled Density

Up to 100 kW of heat dissipation
44U/42OU or 21U/19OU, 19" or 21" Open Compute (OCP)
Compatible with major HW vendors and standards
Local and remote management interfaces
Simplified maintenance
Submer Cloud (remote monitoring & management)
DCIM API - integrate with monitoring tools
Compact form factor easily scalable
Tier III and Tier IV compatible
Vertically stackable configurations available
Optional IP65 (water/dust proof)
Bus bar at the bottom delivering DC Current - 12Vdc / 48Vdc
Hot-Swappable Power Shelf - Have a look here

Technical Specs
Heat dissipation capacity (kW)	50 kW
Double tank IT gear capacity (U, OU) Note: OCP's power shelf/ves (3 U each) is/are excluded.	45 U / 42 OU
IMaximum power consumption (W)	850 W
Dimensions, L x W x H (cm, in)	231 (L) x 93 (W) x 121 (H) cm 91 (L) x 37 (W) x 48 (H) in Maximum height with lid open: 192 (H) cm 76 (H) in
Power supply options	(CE) 380-400 V 50 Hz / (UL) 208-230 V 60 Hz
Water supply inlet temperature, recommended less or equal to (°C, °F)	32 °C / 89.6 °F
Water supply outlet temperature, expected (°C, °F)	5 °C / 9 °F higher than selected water inlet

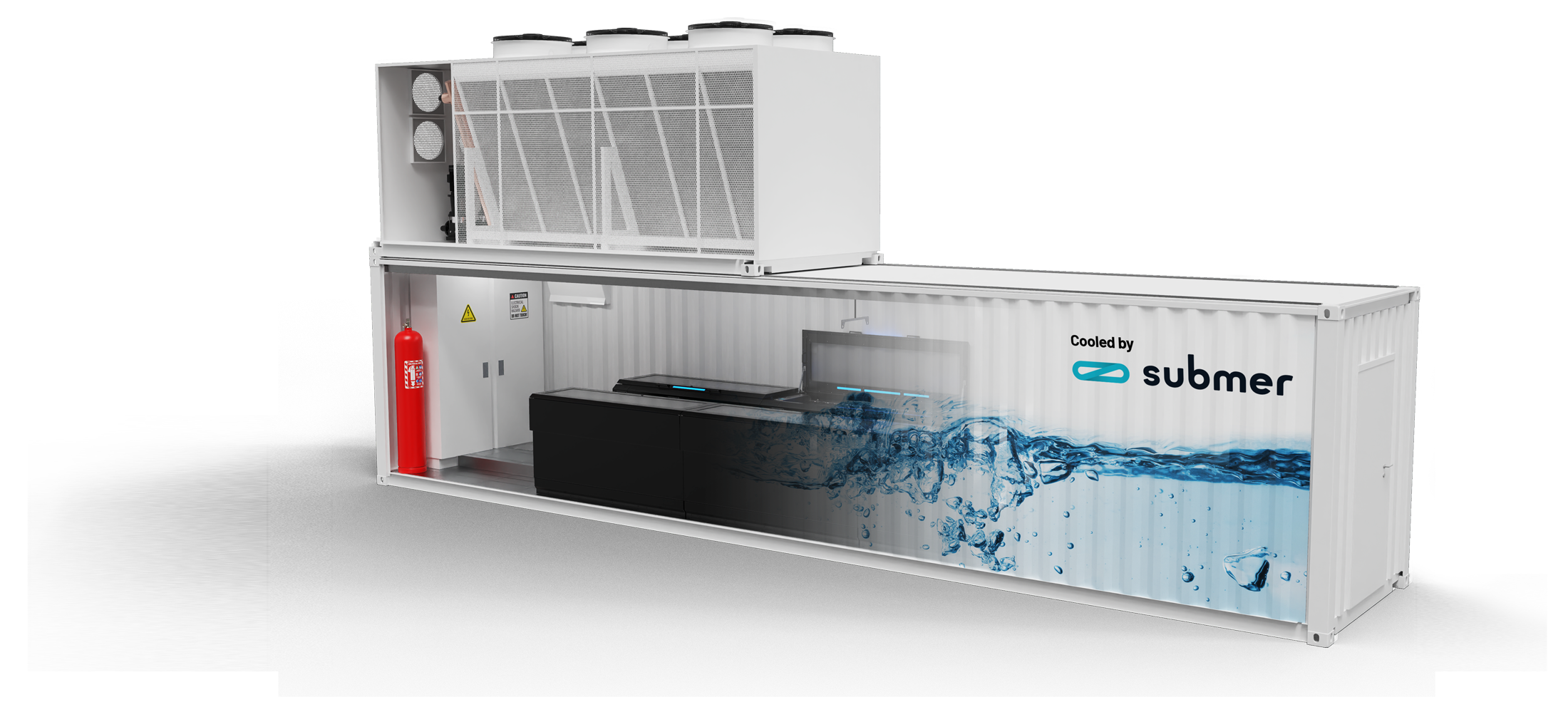

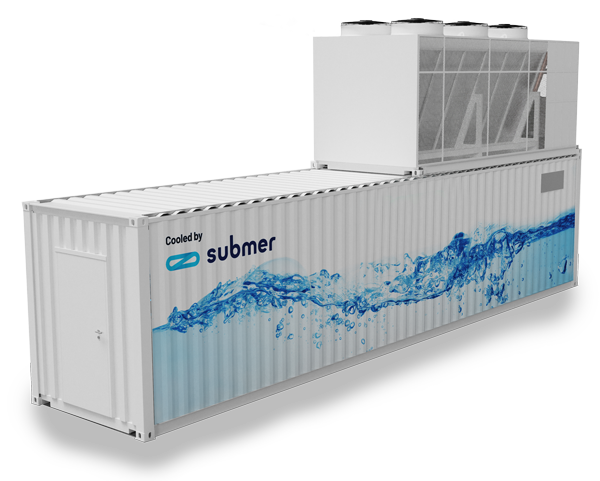

MegaPod

The Smart Datacenter in a Box

From 100kW to 800kW total IT load
Modular design enables flexibility
deliver >95% of the IT energy captured in the form or warm water for heat reuse
Overhead rails + lifting device
SmartCoolant Fluid
Automatic, Gas based fire supression system
Vertically stackable or side by side configurations available

Technical Specs
Total IT Load	From 100kW to 800kW
Immersion rack / tank Capacity Distribution Fluid	SmartPodXL / SmartPodXL+ From 2 x 44U/42OU to 8 x 44U/42OU From 2 x 50kW to 8 x 100kW SmartCoolant
IT Gear handling	Overhead rail + lifting device
Fire supression system	Automatic, gas based
Monitoring and Reporting	Submer Portal / API
Enclosure	From 10' to 40' High Cube shipping container
Cooling Module	Dry Cooler / Adiabatic Cooling Tower
Configuration	Stacked / Side by side
Operating Temperature range	-20°C - +50°C [-4°F - +122°F]
Tier III Ready	Optional

WHY Submer?

Submer is an idea born in 2015 from two brilliant and original minds, Daniel Pope and Pol Valls, to make operating and constructing datacenters more sustainable and efficient. That idea still remains to this day, as the main driver of the Company:

"We enable next generation cooling and automation for data & energy-intense environments by integrating our pristine, highly-efficient & sustainable technologies. Solving the challenges of today and powering the use cases of the future."

Submer helps enable datacenters that make sense through products, platforms, APIs, processes and installations that will move hyperscalers, colocation and huge industries to new levels of efficiency and innovation.

Achieve a PUE <1.03

-60% in HW failure rate

Save 25-40% on TCO

Save 50% on CAPEX building costs

Up to 100kw of compute density

Save 95% on cooling OPEX

Increase speed deployment

Zero waste of water

+30% in HW life-span

Re-use of heat

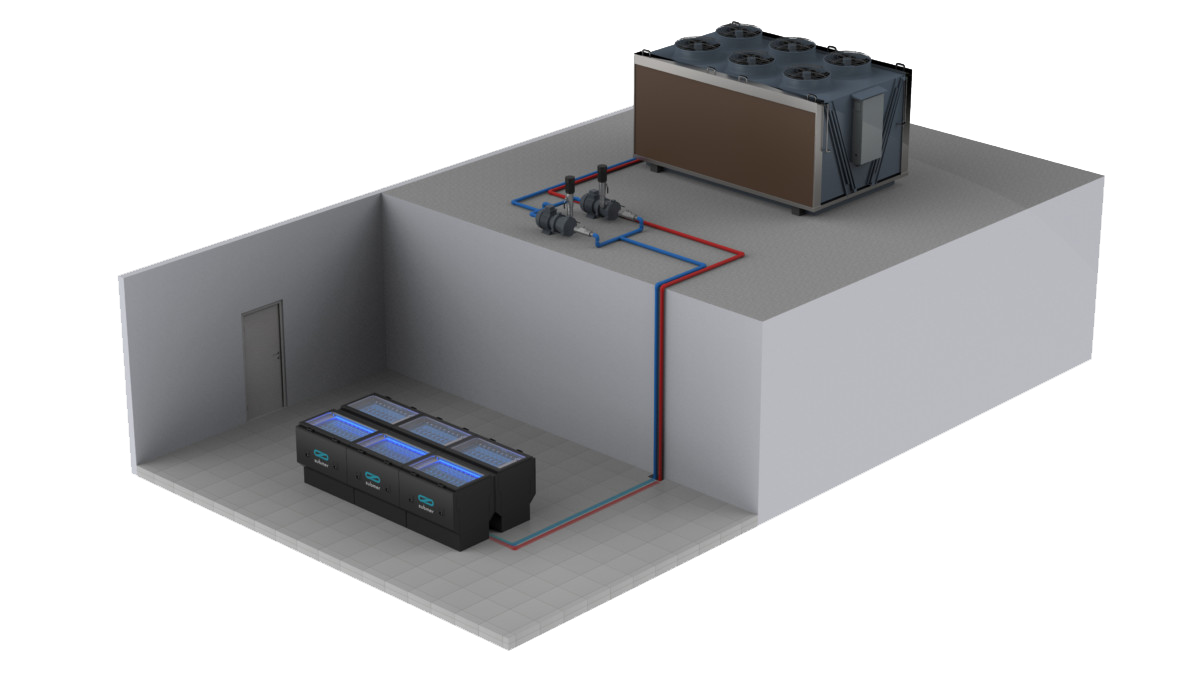

Turnkey Immersion Cooling

Want to roll-out Immersion Cooling in your new or existing infrastructure?

Submer delivers turnkey Immersion Cooling technology including primary cooling, secondary cooling, resilient pump-sets all the way to certified hardware with a guaranteed unrivalled end to end PUE, anywhere on the globe.
