These cloud-grade switches are designed for the converged enterprise branch, campus, and data center, and for service providers. They address growing enterprise demands for high availability, unified communications, and virtualization.

Models

EX9200

The EX9200 line of Ethernet switches provides a programmable, flexible, and scalable foundation for delivering mission-critical applications. In the enterprise campus, the EX9200 enables collaboration and provides simple and secure access for the delivery of mission-critical applications. In the data center, it simplifies operations to align the network with fast-changing business requirements.
EX9200 switches empower organizations to deploy an evolved enterprise core, supporting layer 2 or layer 3 applications with Ethernet VPN (EVPN)-Virtual Extensible LAN (VXLAN). Using these open technologies allows enterprises to create a secure, end-to-end network across geographically dispersed locations while leveraging unified policies to segment traffic.

Product overview

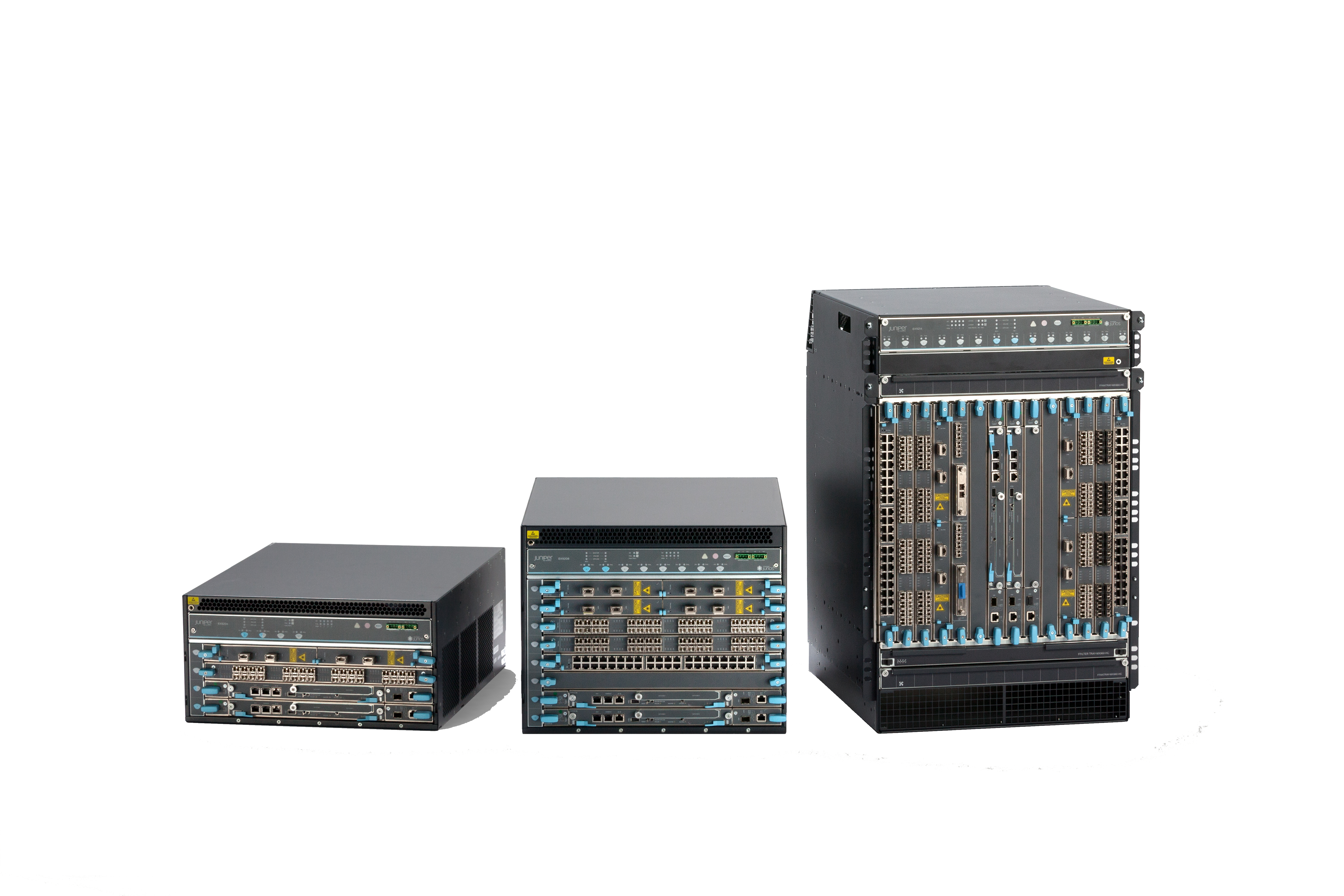

The Juniper Networks EX9200 line of modular Ethernet switches provides a programmable, flexible, and scalable core for delivering mission critical applications in both campus and data center environments, reducing cost and complexity while offering carrier-class reliability. High port densities enable the EX9200 to consolidate and aggregate network layers, dramatically simplifying campus and data center architectures while reducing total cost of ownership (TCO) and lowering power, space and cooling requirements.

Product Description

The EX9200 line of programmable, flexible and scalable modular Ethernet core switches simplifies the deployment of cloud applications, virtualized servers and rich media collaboration tools across campus and data center environments.
The EX9200 is also a key component of Juniper’s AI-Driven Enterprise. The switch decouples the overlay network from the underlay with technologies such as Ethernet VPN (EVPN) and Virtual Extensible LAN (VXLAN), addressing the needs of the modern enterprise network by allowing network administrators to create logical L2 networks over different L3 networks.
The EX9200 is based on Juniper One custom silicon, an ASIC designed by Juniper which provides a programmable Packet Forwarding Engine (PFE) and allows for native support of networking protocols such as virtualization using MPLS over IP and overlay network protocols. ASIC micro code changes delivered through updates to Juniper Networks Junos® operating system provide investment protection by allowing existing hardware to support new or future networking protocols.
The programmability of the EX9200 allows it to support Junos OS-based automation along with the Junos SDK, which enables integration with Puppet and other automation applications. The EX9200’s network programmability also enables integration with leading orchestration applications such as OpenStack.

Fully configured, a single EX9214 chassis can support up to 480 10GbE ports (all at wire speed), delivering one of the industry’s highest line-rate 10GbE port densities for this class of feature rich and programmable switch. The EX9200 switch fabric is capable of delivering up to 480 Gbps (full duplex) per slot. The pass-through midplane design also supports a future capacity of up to 13.2 Tbps.

EX9200 Features at a Glance

Feature	EX9204	EX9208	EX9214
Architecture	Separate dedicated data, control,and management planes
Power	Holds up to four power supplies: -40 to -72 V DC (1+1 redundancy) 100-120 V AC (2+2 redundancy) 200-240 V AC (1+1 redundancy) Maximum power draw: 2,199 W (DC), 2,421 W (AC)	Holds up to four power supplies: -40 to -72 V DC (2+2 redundancy) 100-120 V AC (3+1 redundancy) 200-240 V AC (2+2 redundancy) Maximum power draw: 4,388 W (DC), 4,831 W (AC)	Holds up to four power supplies (two power supplies per power zone; two power zones per system) -40 to -72 V DC (1+1 redundancy per power zone) 200-240 V AC (1+1 redundancy per power zone) Maximum power draw: 9,534 W (DC), 9,318 W (AC)
Cooling	Internally redundant fan tray Side-to-side airflow	Internally redundant fan tray Side-to-side airflow	Front-to-back airflow Hot-swappable fan tray with 1+1 redundancy
Weight (fully loaded)	128.0 lbs (58.1 Kg)	163.6 lbs (74.2 Kg)	350.1 lbs (158.8 Kg)
Fabric	Up to 3 Tbps backplane capacity Up to 1.5 Gbps (full duplex) per slot fabric capacity 1+1 fabric redundancy	Up to 9.6 Tbps backplane capacity Up to 1.5 Tbps (full duplex) per slot fabric capacity 1+1 fabric redundancy	Up to 12 Tbps backplane capacity Up to 1.5 Tbps (full duplex) per slot fabric capacity 2+1 fabric redundancy
Routing Engine	Master and backup Routing Engines (1+1 redundancy) Up to 64 gigabytes DRAM Dual front pluggable solid-state drive (SSD) (Up to 64 GB each) Console, auxiliary serial, and Ethernet management ports USB storage interface
Operating system	Juniper Networks Junos operating system
High availability	Hardware designed for continuous operation: Secure, modular architecture that isolates faults Separate control and forwarding planes that enhance scalability and resiliency Transparent failover and network recovery Graceful Routing Engine switchover (GRES) Nonstop active routing (NSR) Nonstop bridging (NSB) Unified in-service software upgrade (unified ISSU)*
Layer 2 features	Up to 1 million media access control (MAC) addresses Up to 512,000 Address Resolution Protocol (ARP) entries with ML license (256,000 entries without ML license) Up to 512,000 Forwarding Information Block (FIB) entries with ML license (256,000 entries without ML license) Jumbo frames (9,192 bytes maximum) 32,000 VLANs VLAN Registration Protocol 3ad – Link Aggregation Control Protocol (LACP) 1D – Spanning Tree Protocol (STP) 1w – Rapid Spanning Tree Protocol (RSTP) 1s – Multiple Spanning Tree Protocol (MSTP) VLAN Spanning Tree Protocol (VSTP)

Feature	EX9204	EX9208	EX9214
Layer 3 features	1 million IPv4 routing information base (RIB) 1 million IPv6 RIB Static routing RIP v1/v2 OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP)* IPv6 Bidirectional Forwarding Detection (BFD) Virtual routers BGP (Advanced Feature license) IS-IS (Advanced Feature license)
Hardware tunneling	GRE tunnels MPLS capabilities (Advanced Feature License) VPLS BGP/MPLS VPNs Ethernet VPNs*
Multicast	Up to 256,000 IPv4 multicast routes Up to 256,000 IPv6 multicast routes Internet Group Management Protocol (IGMP) v1/v2/v3 IGMP snooping MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM Multicast Source Discovery Protocol (MSDP)
Firewall filters	Ingress and egress L2-L4 access control lists (ACLs): Port ACLs VLAN ACLs Router ACLs Control plane denial-of-service (DoS) protection
Quality of service (QoS)	16,000 policers per chassis 8 egress queues per port Weighted random early detection (WRED) scheduling Weighted round-robin (WRR) queuing Strict priority queuing
Virtualization	Integration with Juniper Networks Contrail Integration with VMware NSX SDN controllers Network virtualization protocols such as Virtual eXtensible LAN (VXLAN) and Open vSwitch Database (OVSDB) VXLAN Layer 2 and Layer 3 Gateway* EVPN* EVPN Multihoming (EVPN Switch Interface – Link aggregation)^* EVPN VXLAN L2 and L3 gateway^* Virtual Private LAN Service (VPLS) for Data Center Interconnect
Management	Junos OS command-line interface (CLI) Junos XML management protocol SNMP v1/v2/v3 RADIUS TACACS+ Extensive MIB support Firewall-based port mirroring Link Layer Discovery Protocol (LLDP) Advanced Insight Solutions (AIS)

EX9200 System Capacity

* ISSU is only supported on the EX9200-32XS, EX9200-40F, EX9200-40T, EX9200-40F-M, and EX9200-2C-8S, EX9200-6QS, EX9200-15C, and EX9200-2C-8S
	EX9204	EX9208	EX9214
Backplane capacity	Up to 3 Tbps	Up to 9 Tbps	Up to 12 Tbps
Maximum fabric bandwidth/slot	1.5 Tbps/slot	1.5 Tbps/slot	1.5 Tbps/slot
Maximum 1GbE wire speed port density (wire speed)	120	240	440
Maximum 10GbE wire speed port density (wire speed)	144 (96)	288 (240)	576 (480)
Maximum 25GbE wire speed port density (wire speed)	120*	360*	480*
Maximum 40GbE wire speed port density (wire speed)	30	90	120
Maximum 100GbE wire speed port density (wire speed)	30	90	120

Chassis Specifications

	EX9204	EX9208	EX9214
Dimensions (W x H x D)	17.5 x 8.7 x 27.75 in (44.5 x 22.1 x 70.5 cm) Total depth includes standard cable manager measurements.	17.5 x 14 x 27.75 in (44.5 x 35.6 x 70.5 cm) Total depth includes standard cable manager measurements.	17.5 x 27.8 x 27.75 in (44.5 x 70.5 x 70.5 cm) Total depth includes standard cable manager measurements.
Rack units	5 U	8 U	16 U
Weight
Base configuration Redundant configuration Chassis with midplane Fully loaded chassis	68.3 lbs (31.0 kg) 97.8 lbs (44.4 kg) 52.0 lbs (23.6 kg) 128.0 lbs (58.1 kg)	88.4 lbs (40.1 kg) 111.2 lbs (50.5 kg) 65.5 lbs (29.7 kg) 163.6 lbs (74.2 kg)	203.5 lbs (92.3 kg) 225.1 lbs (102.1 kg) 150.0 lbs (68.0 kg) 350.1 lbs (158.8 kg)
Total number of slots	4	8	14
Slots available for line cards**	2 with fabric redundancy (3 without)*	6*	11 with fabric redundancy (12 without)*

EX9250

The EX9250 line of Ethernet switches provides compact, programmable, and scalable core and aggregation devices for enterprise environments, reducing cost and complexity while offering carrier-class reliability.
EX9250 switches empower organizations to deploy an evolved enterprise core, supporting layer 2 or layer 3 applications by combining Ethernet VPN (EVPN) and Virtual Extensible LAN (VXLAN) technologies. Using these open technologies allows enterprises to create a coherent, end-to-end network across geographically dispersed locations while leveraging unified policies to segment traffic.

Product overview

The EX9250 line of Ethernet switches provides compact, programmable, and scalable core and aggregation devices for enterprise environments, reducing cost and complexity while offering carrier-class reliability. The EX9250 Ethernet switches dramatically simplify campus and data center architectures by enabling Evolved Enterprise Core deployments with Ethernet VPN, creating a path to a 100GbE core.

Product Description

The Juniper Networks® EX9250 line of compact, programmable, and scalable Ethernet switches is ideal for aggregating access switches such as Juniper Networks EX2300, EX3400, EX4300, and EX4600 Ethernet Switches deployed in campus wiring closets and in on-premises data centers.
The EX9250 is also a key component of Juniper’s AI-Driven Enterprise. The switch decouples the overlay network from the underlay with technologies such as Ethernet VPN (EVPN) and Virtual Extensible LAN (VXLAN), addressing the needs of the modern enterprise network by allowing network administrators to create logical L2 networks over different L3 networks.

Two EX9250 chassis options are available, providing considerable deployment flexibility:

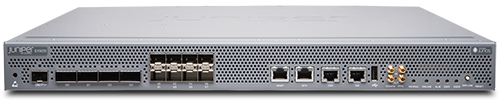

EX9251 Ethernet Switch is a fixed-configuration 1 U chassis that supports 8-port 1GbE/10GbE and 4-port 40GbE/100GbE.
EX9253 Ethernet Switch is a two-slot modular 3 U chassis that supports any combination of the following line cards:

EX9253-6Q12C, a 12-port QSFP28 40GbE/100GbE and 6-port QSFP+ 40GbE line card
EX9253-6Q12C-M, a 12-port QSFP28 40GbE/100GbE and 6-port QSFP+ 40GbE line card with Media Access Control Security (MACsec) support

Fully configured, a single EX9253 chassis can support up to 144 10GbE ports (all at wire speed), delivering one of the industry’s densest line-rate 10GbE port densities for this class of feature-rich and programmable switch. The EX9253 switch is capable of delivering up to 2.4 Tbps per slot.

EX9200 Features at a Glance

Feature	EX9251	EX9252
Architecture	Single data, control, and management plane	Separate dedicated data, control, and management planes
Power	Holds up to two power supplies: -40 to -72 V DC (1+1 redundancy) Autosensing 120/240 V AC (1+1 redundancy) Maximum power draw: 312 W (DC), 300 W (AC)	Holds up to six power supplies: -40 to -72 V DC (3+1 redundancy) 100-120 V AC (3+1 redundancy) 200-240 V AC (3+1 redundancy) Maximum power draw: 2692 W (DC), 2692 W (AC)
Cooling	Internally redundant fan tray with front-to-back airflow	Internally redundant fan tray with front-to-back airflow
Weight (fully loaded)	23.15 lb (10.5 kg)	120 lb (54.43 kg))
Maximum throughput	Up to 800 Gbps	Up to 4.8 Tbps
Routing Engine(RE)	Integrated single RE 1.6 GHz, 8 core Intel Xeon processor Up to 32 gigabytes DRAM Solid-state drive (SSD) (up to 100 GB) Console, auxiliary serial, and Ethernet management ports USB storage interface	Primary and backup REs (1+1 redundancy) 1.6 GHz, 8-core Intel Xeon processor Up to 64 gigabytes DRAM Dual front pluggable solid-state drive (SSD) (up to 100 GB each) Console, auxiliary serial, and Ethernet management ports USB storage interface
Operating system	Juniper Networks Junos operating system	Juniper Networks Junos operating system
High availability	Hardware designed for continuous operation: Secure, modular architecture that isolates faults Separate control and forwarding planes that enhance scalability and resiliency	Hardware designed for continuous operation: Secure, modular architecture that isolates faults Separate control and forwarding planes that enhance scalability and resiliency Transparent failover and network recovery Graceful Routing Engine switchover (GRES) Nonstop active routing (NSR) Nonstop bridging (NSB)
Layer 2 features	Up to 1 million MAC addresses Up to 512,000 Address Resolution Protocol (ARP) entries with mid-scale (ML) license (256,000 entries without ML license) Up to 512,000 forwarding information base (FIB) entries with ML license (256,000 entries without ML license) Jumbo frames (9192 bytes maximum) 32,000 VLANs VLAN Registration Protocol 802.3ad—Link Aggregation Control Protocol (LACP) 802.1D—Spanning Tree Protocol (STP) 802.1w—Rapid Spanning Tree Protocol (RSTP) 802.1s—Multiple Spanning Tree Protocol (MSTP) VLAN Spanning Tree Protocol (VSTP) Layer 2 Protocol Tunneling (L2PT)
Layer 3 features	1 million IPv4 routing information base (RIB) 1 million IPv6 RIB Static routing RIP v1/v2 OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP) IPv6 Bidirectional Forwarding Detection (BFD) Virtual routers BGP (Advanced Feature license) IS-IS (Advanced Feature license)
Hardware tunneling	GRE tunnels MPLS capabilities (Advanced Feature License) VPLS BGP/MPLS VPNs Ethernet VPNs
Multicast	Up to 256,000 IPv4 multicast routes Up to 256,000 IPv6 multicast routes Internet Group Management Protocol (IGMP) v1/v2/v3 IGMP snooping Multicast Listener Discovery (MLD) v1/v2 MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM Multicast Source Discovery Protocol (MSDP)
Firewall filters	Ingress and egress L2-L4 access control lists (ACLs): Port ACLs VLAN ACLs Router ACLs Control plane denial-of-service (DoS) protection
Quality of service (QoS)	16,000 policers per chassis 8 egress queues per port Weighted random early detection (WRED) scheduling Weighted round-robin (WRR) queuing Strict priority queuing
Virtualization	Integration with Juniper Contrail Platform Integration with VMware NSX vSphere Network virtualization protocols such as VXLAN VXLAN L2 and L3 gateway EVPN and VPLS for DCI
Management	Junos OS CLI Junos XML management protocol SNMP v1/v2/v3 RADIUS TACACS+ Extensive MIB support Firewall-based port mirroring Link Layer Discovery Protocol (LLDP) Advanced Insight Solutions (AIS)

EX9250 System Capacity

	EX9251	EX9253
Maximum throughput bandwidth/slot	800 Gbps 400 Gbps full duplex	2.4 Tbps/slot 1.2 Tbps full duplex
Maximum 10GbE port density (wire speed)	24/td>	144 (with break out cables)
Maximum 40GbE port density (wire speed)	4	36
Maximum 100GbE port density (wire speed)	4	24

Chassis Specifications

	EX9251	EX9253
Dimensions (W x H x D)	17.6 x 1.75 x 18.7 in. (44.7 x 4.45 x 47.5 cm)	19 x 5.217 x 30 in. (48.26 x 13.25 x 76.2 cm) Total depth includes standard cable manager measurements.
Rack units	1 U	3 U
Weight	23.15 lb (10.5 kg)	120 lb (54.43 kg)
Total number of slots	N/A	3
Slots available for line cards**	N/A	2

EX4650

The EX4650 Ethernet Switch offers a compact, highly scalable, high-performance 10/25/100GbE solution for midsized to large enterprise campus distribution deployments. The EX4650 switch delivers rich telemetry data for Wired Assurance, bringing AI-powered automation and service levels to access switching.
The EX4650 Ethernet Switch offers a compact, highly scalable, high-performance 10/25/100GbE solution for midsized to large enterprise campus distribution deployments. The EX4650 switch is cloud-ready and ZTP-enabled, so it can be onboarded, provisioned and managed with Wired Assurance, to deliver better experiences for connected devices.

Product overview

The EX4650 line of Ethernet switches delivers high scale, high availability, and high performance for campus distribution deployments. The EX4650 offers fixed 1GbE/10GbE/25GbE ports with 40GbE/100GbE uplinks that support advanced campus environments, allowing them to provide the onramp to multicloud, to deploy cutting edge cloud applications, and to embrace IoT technology. It is also flexible enough for use in enterprise on-premises top-of-rack and service provider aggregation deployments.
The EX4650 is onboarded, provisioned, and managed in the Juniper Mist Cloud Architecture. Mist Wired Assurance delivers better experiences for connected devices through AI-powered automation and service levels.

Product Description

The Juniper Networks® EX4650 Ethernet Switch delivers 4 Tbps of Layer 2 and Layer 3 connectivity to networked devices such as secure routers, servers, and other switches. Featuring 48 wire-speed 10GbE/25GbE small form-factor pluggable and pluggable plus transceiver (SFP/SFP+/SFP28) ports and 8 wire-speed 40GbE/100GbE quad SFP+ transceiver (QSFP+/QSP28) ports in a compact 1 U platform, the EX4650 provides the flexibility to support mixed 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE environments. Four models are available: two featuring AC power supplies with front-to-back or back-to-front airflow, and two featuring DC power supplies with front-to-back or back-to-front airflow. All models include dual power supplies.

EX4650 Switch Specifications

Hardware

Switching Capacity	2 Tbps (unidirectional)/4 Tbps (bidirectional) Layer 2/Layer 3 throughput (maximum with 64 byte packets): 2976 Mpps (wire speed)
Weight	23.7 lb (10.75 kg)
Dimensions (HxWxD	1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) Switching mode: Cut-through and store-and-forward Front-to-back (airflow out) for hot aisle deployment Back-to-front (airflow in) for cold aisle deployment Management and console port connections
Power Consumption	Max load 450 W; typical load 260 W; idle load 160 W
Interface Options	1GbE SFP: 48 (24 copper 1GbE) 10GbE SFP+: 48/80 (with breakout cable) 25GbE SFP28: 48/80 (with breakout cable) 40GbE QSFP+: 8 100GbE QSFP28: 8 Each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port Each QSFP28 port can be configured as a 4 x 25GbE interface or as a 100 Gbps port 1 USB 2.0 port 1 RS-232 console port 2 management ports: 2 x RJ-45 ports Supported transceiver and direct attach cable (DAC) SFP 1GbE optical and copper module SFP+ 10GbE optical modules SFP+ DAC cables: 1/3 m twinax copper and 1/3/5/7 m active twinax copper SFP28 DAC cables: 1 m twinax copper SFP28 optics: SR, LR QSFP+ DAC cables: 1/3 m twinax copper QSFP+ optics: SR4, LX4, ESR4, ER4, LR4 QSFP+ to SFP+ 10GbE direct attach breakout copper (1/3 m twinax copper cable) QSFP28 to SFP28 25GbE direct attach breakout copper (1 m twinax copper cable) QSFP28 optics: SR4, ER4, PSM4, CWDM4, LR4
Virtual Chassis	100GbE and 40GbE as Virtual Chassis port Virtual Chassis Routing Engine (RE) election Virtual Chassis pre-provisioning (plug-and-play) Auto-LAG formation of Virtual Chassis ports FCoE transit across Virtual Chassis members QoS on Virtual Chassis ports Local designated forwarding Graceful RE switchover (GRES) Nonstop routing (NSR) Nonstop bridging (NSB) Monitor distributed aggregate interface Control plane protection for virtual RE
Rack Installation Kit	Versatile four-post mounting options for 19-in server rack or datacom rack
Airflow	Redundant (N+1) and hot-pluggable fan modules for front-to-back and back-to-front airflow Redundant variable-speed fans to reduce power draw
Power Supply and Fan Modules	Dual redundant (1+1) and hot-pluggable 650 W AC/DC power supplies 10-240 V single phase AC power -44 to -72 V DC power supply Redundant (4+1) and hot-pluggable fan modules for front-to-back or back-to-front airflow
Performance Scale (Unidimensional)	Layer 2 MAC addresses per system: 288,000 VLAN IDs: 4093 Number of link aggregation groups (LAGs): 80 Number of ports per LAG: 64 Multiple Spanning Tree Protocol (MSTP) instances: 64 VLAN Spanning Tree Protocol (VSTP) instances: 509 Jumbo frame: 9216 bytes Firewall filters Ingress filters: 1500 Egress filters: 512 Layer 3 IPv4 unicast prefixes: 360,000 IPv4 unicast routes: 208,000 IPv4 multicast routes: 104,000 ECMP paths: 64 IPv6 unicast prefixes: 170,000 IPv6 unicast routes: 104,000 IPv6 multicast routes: 52,000 ARP entries: 64,000 Traffic mirroring Mirroring destination ports per switch: 4 Maximum number of mirroring sessions: 4 Mirroring destination VLANs per switch: 4
