Revolutionizing Storage Interface Technology
HighPoint's PCIe Gen5 and Gen4 NVMe storage solutions, driven by high-performance PCIe switching architecture, meet the demands of AI and data centers. The solution to empower customers to stay ahead in a fast-evolving technology landscape.
PCIe Gen5

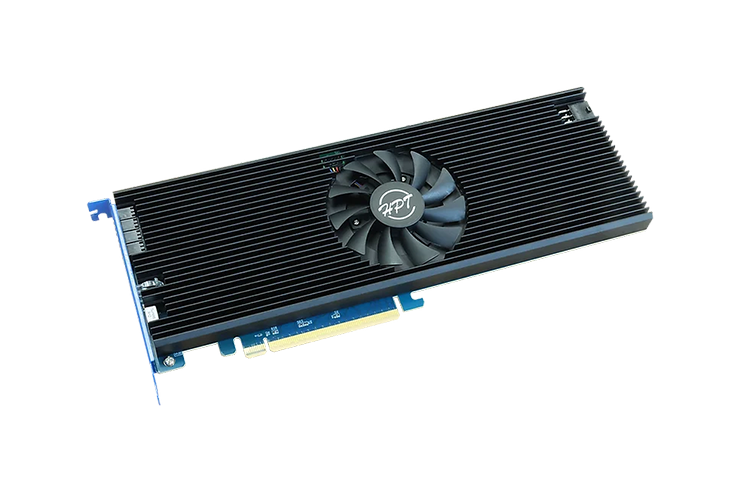

Rocket 1608A
- 8-Dedicated PCIe 5.0 device channels
- Directly Supports up to 8x M.2 NVMe SSDs (up to 2280 FF)
- High-Performance 48-Lane Gen5 Switch Architecture: x16 lanes of dedicated upstream and x4 lanes of downstream bandwidth for each device channel
- Delivers 64GB/s of Bandwidth & Real-world Sustained transfer speeds up to 56,000MB/s
- Advanced PCIe Gen5 Cooling Solution
- Hardware Secure Boot
- Plug & Play Installation for any OS with Native NVMe driver support

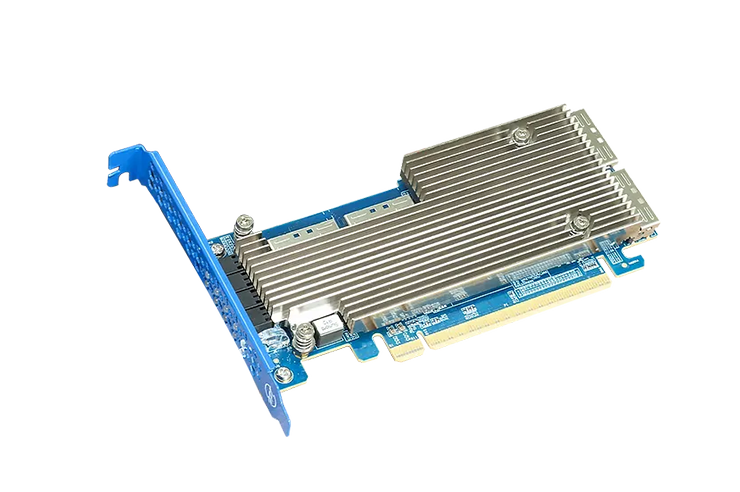

Rocket 1628A
- 8-Dedicated PCIe 5.0 device channels
- 4x MCIO ports can directly support up to 8x U.2/U.3 or E3.S NVMe SSDs, and as many as 32 via backplane connectivity
- High-Performance 48-Lane Gen5 Switch Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Delivers 64GB/s of Bandwidth & Real-world Sustained transfer speeds up to 56,000MB/s
- Integrated NVMe Hot-Plug & Hot-Swap Capability
- Advanced PCIe Gen5 Cooling Solution
- Hardware Secure Boot
- Plug & Play Installation for any OS with Native NVMe driver support

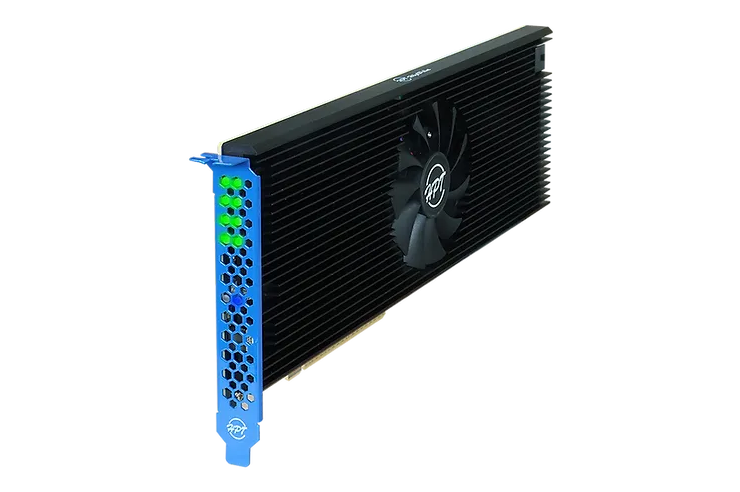

Rocket 7608A
- 8-Dedicated PCIe 5.0 device channels
- Directly Supports up to 8x M.2 NVMe SSDs (up to 2280 FF)
- High-Performance 48-Lane Gen5 Switch Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Delivers 64GB/s of Bandwidth & Real-world Sustained transfer speeds up to 56,000MB/s
- Advanced, Intelligent Gen5 Cooling Solution
- Comprehensive Storage Health Monitoring, Management & Analysis Suite
- Industry-proven NVMe RAID Technology supports up to four RAID 0, 1 or 10 configurations
- Optional Boot-RAID Capability for Linux & Windows
- SafeStorage TCG SSD Solution
- Hardware Secure Boot
- For Windows & Linux OS platforms

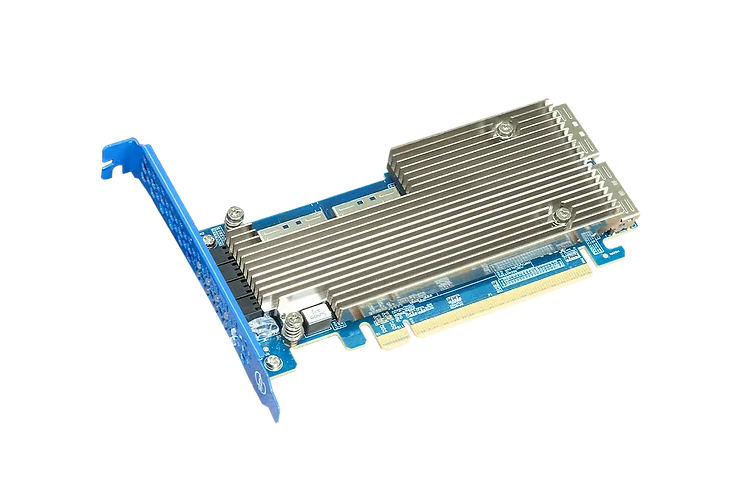

Rocket 7628A
- 8-Dedicated PCIe 5.0 device channels
- Directly Supports up to 8x U.2/U.3 or E3.S NVMe SSDs via 4x MCIO Ports & industry standard backplane connectivity
- High-Performance 48-Lane Gen5 Switch Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Delivers 64GB/s of Bandwidth & Real-world Sustained transfer speeds up to 56,000MB/s
- Integrated NVMe Hot-Plug & Hot-Swap Capability
- Intelligent, Pro-Active Gen5 Cooling Solution
- Comprehensive Storage Health Monitoring, Management & Analysis Suite
- Industry-proven NVMe RAID Technology supports up to four RAID 0, 1 or 10 configurations
- Optional Boot-RAID Capability for Linux & Windows
- SafeStorage TCG SSD Solution
- Hardware Secure Boot
- For Windows & Linux OS platforms
PCIe Gen4

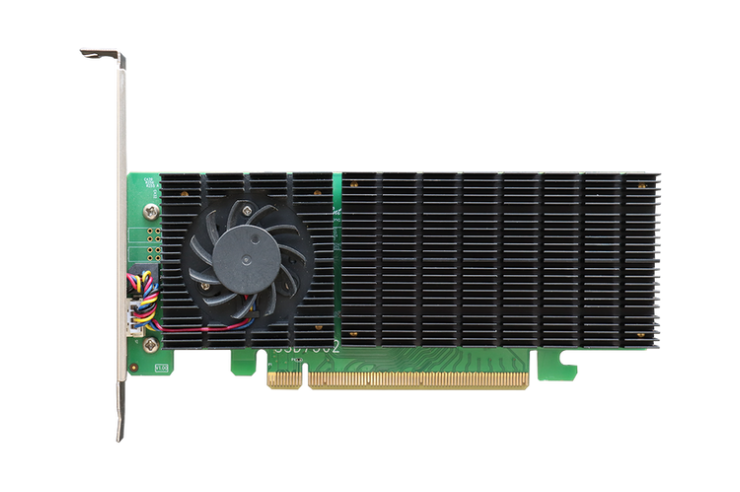

SSD7502
- Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solution
- High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- 2x Dedicated M.2 NVMe Device Channels
- Supports 2242/2260/2280 M.2 Form Factors
- Compact, Half-Height form factor
- Supports RAID 0, 1 and Single Disk configurations
- Advanced Gen4 Hyper Cooling Solution
- Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution
- Bootable RAID Support for Windows and Linux

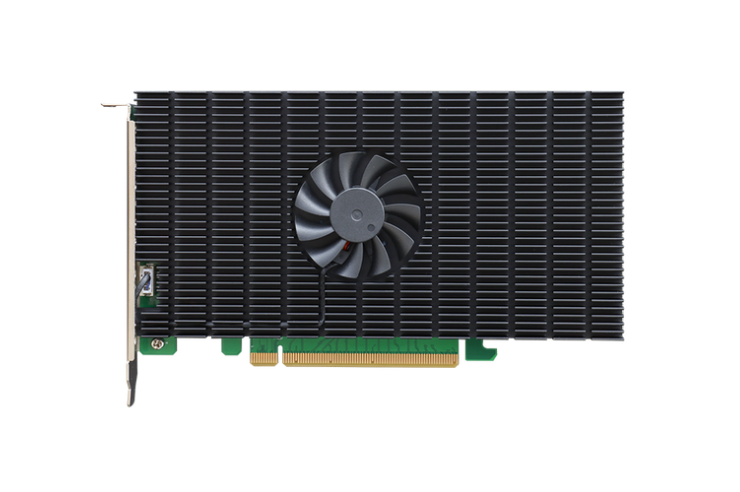

SSD7505
- Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solution
- High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- 4x Dedicated M.2 NVMe Device Channels
- Supports 2242/2260/2280/22110 M.2 Form Factors
- Advanced Gen4 Hyper Cooling Solution
- Supports RAID 0, 1, 10 and Single-Disk Configurations
- Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution
- Bootable RAID Support for Windows and Linux

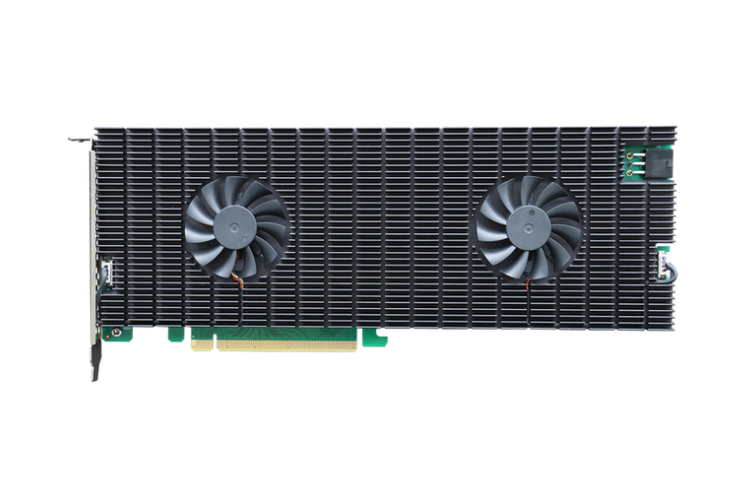

SSD7540
- Compact, Ultra-High Density NVMe RAID Solution
- Dedicated PCIe 4.0 x16 host interface
- High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- 8x Dedicated M.2 NVMe Device Channels
- Supports 2242/2260/2280 M.2 Form Factors
- Advanced Gen4 Hyper Cooling Solution
- Supports RAID 0, 1, 10 and Single-Disk Configurations
- Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution
- Compatible with macOS and industry Linux and Windows OS platforms

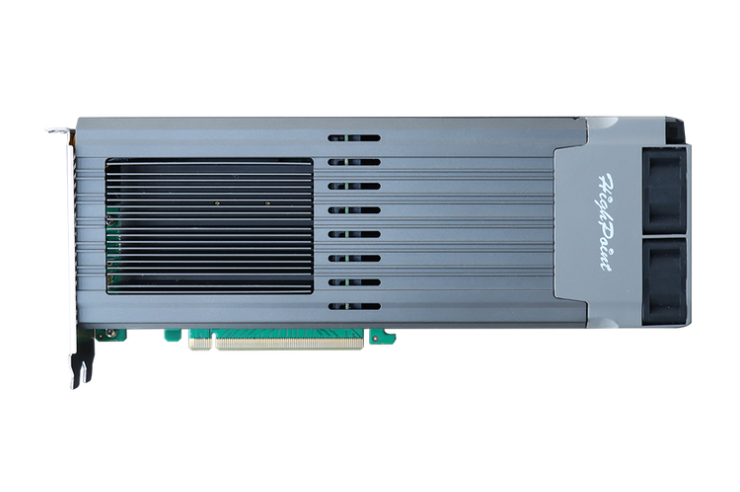

SSD7749E
- Ultra-High Density NVMe AIC RAID Solution
- Dedicated PCIe 4.0 x16 host interface
- High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- 8x Dedicated E1.S NVMe Device Channels
- Supports 8x 9.5mm or 4x 15mm Datacenter Class E1.S SSDs
- Supports RAID 0, 1, 10 and Single-Disk Configurations
- HighPoint SafeStorage Encryption Solution
- Robust, Dual-Width NVMe Cooling Solution
- Tool-less SSD Loading System
- Comprehensive Management Suite with Real-Time SSD TBW and temperature monitoring solution
- Available for Linux & Windows PCs and 2019 & 2023 Mac Pro platforms

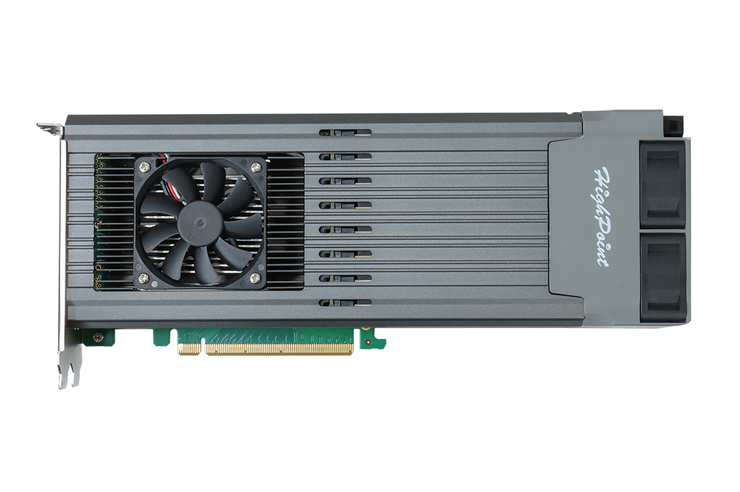

SSD7749M2
- Compact, Single-Sided High-Density Storage Solution: Directly hosts up to 16x 2280 M.2 Form factor SSDs of any capacity
- High-Performance PCIe Gen4 Switch Architecture: x16 lanes of dedicated upstream and x4 lanes of downstream bandwidth for each device port
- Sustained transfer speeds up to 28,000MB/s
- Precision Engineered Dual-Width Cooling Solution Enhances reliability & Prevents Thermal Throttling
- Comprehensive Management & Monitoring Suite
- Supports up to four RAID 0, 1 or 10 arrays
- Boot-RAID Capability for Linux & Windows
- SafeStorage SED Solution

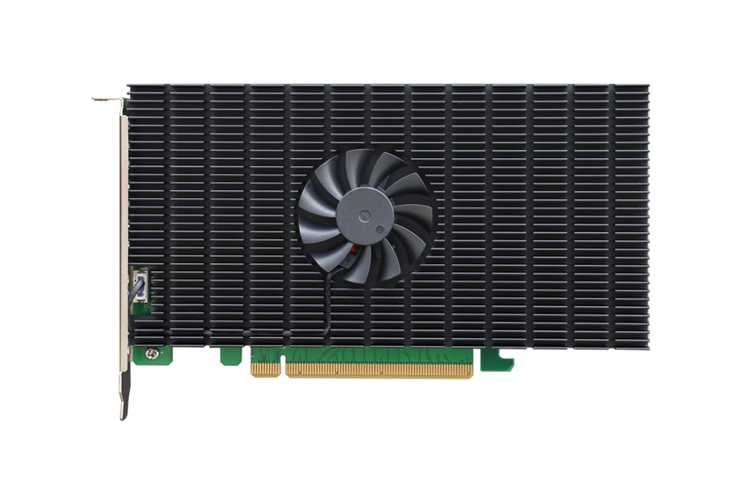

Rocket-1504
- Up to 4 NVMe SSDs
- Fully compliant with Industry standard PCle 3.0 Slots; no Bifurcation dependency or need for specific brand/model of motherboards
- High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Native, in-box NVMe driver support for all major OS platforms
- Broad Compatibility with current computing platforms: HP, Dell, Alienware, Legacy Mac Pro, 2019 Mac Pro, Apple M1 Platforms
- Card can be used in any slot PCle 3.0 or 4.0 slot; Bifurcation or standard
- Gen4 Hyper Cooling Solution

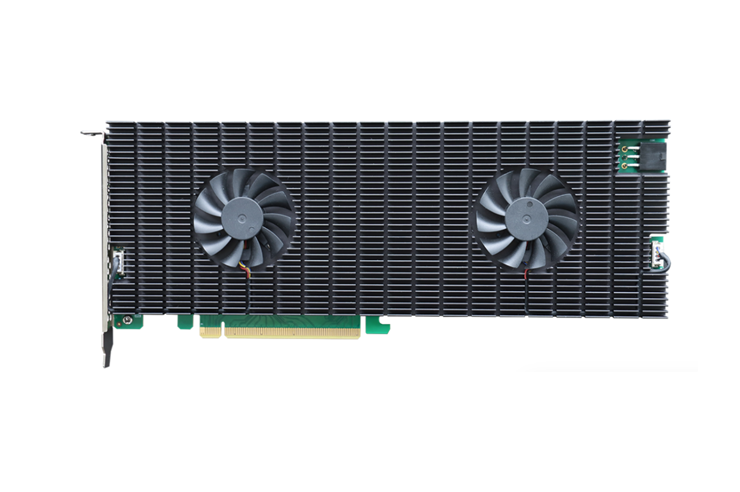

Rocket-1508
- Up to 8 NVMe SSDs
- Fully compliant with Industry standard PCle 3.0 Slots; no-Bifurcation dependency or need for specific brand/model of motherboards
- High-Performance PCIe Gen4 Switching Technology: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Native, in-box NVMe driver support for all major OS platforms
- Broad Compatibility with current computing platforms: HP, Dell, Alienware, Legacy Mac Pro, 2019 Mac Pro, Apple M1 Platforms
- Card can be used in any slot PCle 3.0 or 4.0 slot; Bifurcation or standard
- Gen4 Hyper Cooling Solution

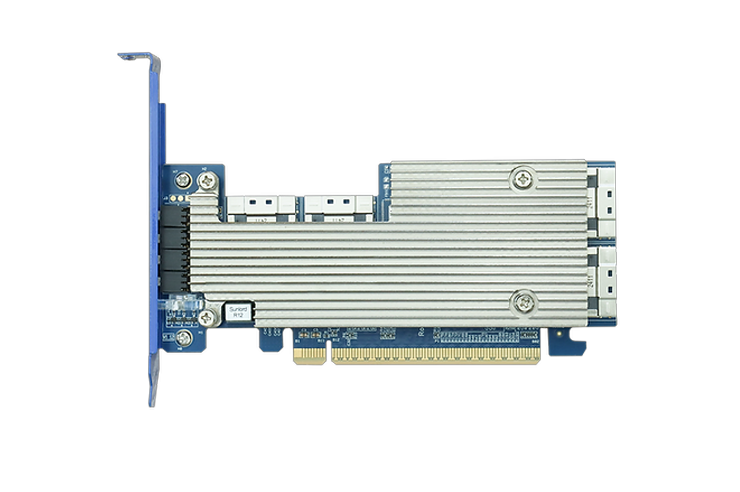

Rocket-1528D
- 8-Dedicated PCIe 4.0 device channels
- Directly Supports up to 8x U.2/U.3 NVMe SSDs via 4x SlimSAS SFF-8654 Ports & industry standard backplane connectivity
- High-Performance 48-Lane Gen4 Switch Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Delivers 32GB/s of Bandwidth & Real-world Sustained transfer speeds up to 27,000MB/s
- Integrated NVMe Hot-Plug & Hot-Swap Capability
- PCIe Gen4 Hyper-Cooling Solution
- Hardware Secure Boot
- Plug & Play Installation for any OS with Native NVMe driver support

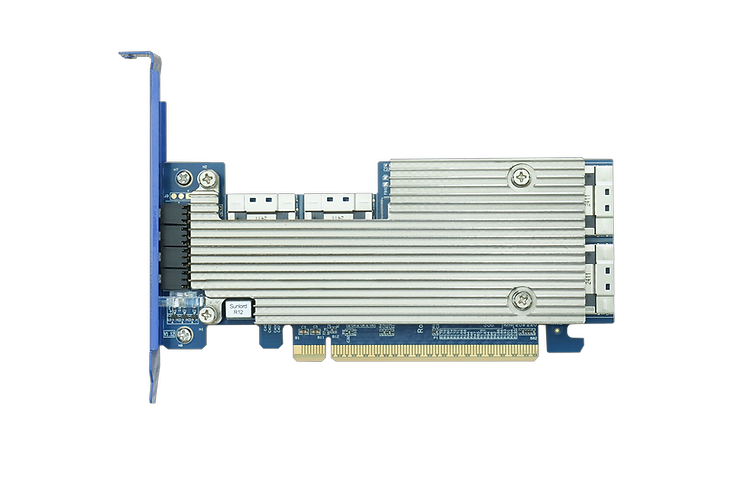

Rocket 7528D
- 8-Dedicated PCIe 4.0 device channels
- Directly Supports up to 8x U.2/U.3 NVMe SSDs via 4x SlimSAS x8 (SFF-8654) Ports & industry standard backplane connectivity
- High-Performance 48-Lane Gen4 Switch Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel
- Delivers 32GB/s of Bandwidth & Real-world Sustained transfer speeds up to 27,000MB/s
- Integrated NVMe Hot-Plug & Hot-Swap Capability
- PCIe Gen4 Hyper-Cooling Solution
- Comprehensive Storage Health Monitoring & Management Suite
- Industry-proven NVMe RAID Technology supports up to four RAID 0, 1 or 10 configurations
- Optional Boot-RAID Capability for Linux & Windows
- SafeStorage TCG SSD Solution
- Hardware Secure Boot
- For Windows & Linux OS platforms
