Dell PowerEdge R750 Server

Dell PowerEdge R750 Server

  • Enterprise server powered by 3rd generation Intel® Xeon® Scalable processors

  • Dual-socket 2U rack server that delivers outstanding performance for the most demanding workloads

  • Supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds

  • Supports PCIe Gen 4 and up to 24 NVMe drives with improved air-cooling features to address substantial throughput improvements

  • Increase efficiency and accelerate operations with autonomous collaboration

  • Protect your data assets and infrastructure with proactive resilience

  • Optional Direct Liquid Cooling to support increasing power and thermal requirements

  • Using Dell Technologies' intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business

Request Info
3rd Gen Intel Xeon Scalable Processor
3rd Generation Intel® Xeon® Scalable Processor

Features

General purpose server for your demanding workloads

The Dell EMC PowerEdge R750, powered by 3rd Generation Intel® Xeon® Scalable processors, is the optimal rack server to address application performance and acceleration. It offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements

  • Supports 8 channels per CPU, up to 32 DDR4 DIMMs at 3200 MT/s DIMM speed
  • Address substantial throughput improvements with PCIe Gen 4 and up to 24 NVMe drives
  • Ideal for traditional corporate IT, database and analytics, VDI, and AI/ML and Inferencing
  • Optional Direct Liquid Cooling support to address high wattage processors

Ideal workloads:

  • Traditional corporate IT
  • Database and Analytics
  • Virtual Desktop Infrastructure
  • AI/ML and HPC

Protect your data assets and infrastructure with proactive resilience

The Dell EMC PowerEdge R750 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.

  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
  • Maintain server firmware safety with digitally signed firmware packages
  • Prevent unauthorized configuration or firmware change with system lockdown
  • Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

Increase efficiency and accelerate operations with autonomous collaboration

The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.

  • Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
  • Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
  • Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
  • Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools

Tech Specs & Customization

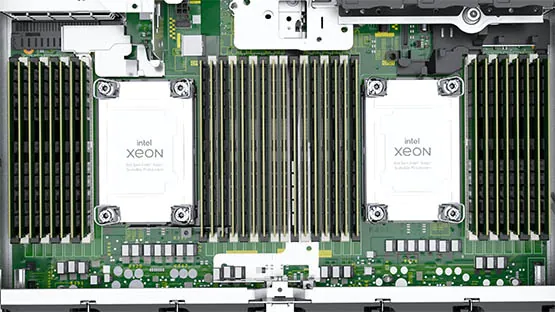

Processor
Processor
Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor
Operating System and Hypervisors
Operating System
Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Dimensions
Height
86.8 mm (3.41 inches)
Width*
482 mm (18.97 inches)
Depth*
758.3 mm (29.85 inches) - without bezel
772.14 mm (30.39 inches) - with bezel
Memory*

32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s

Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max

Supports registered ECC DDR4 DIMMs only
DIMM Speed
Up to 3200 MT/s
Memory Type
RDIMM 2 TB max
LRDIMM 8 TB max
Intel Persistent Memory 200 series (BPS) slots, 8 TB max
Supports registered ECC DDR4 DIMMs only
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
Mobility
OpenManage Mobile
OpenManage Software
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage Connections
IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios® Core
Nagios® XI

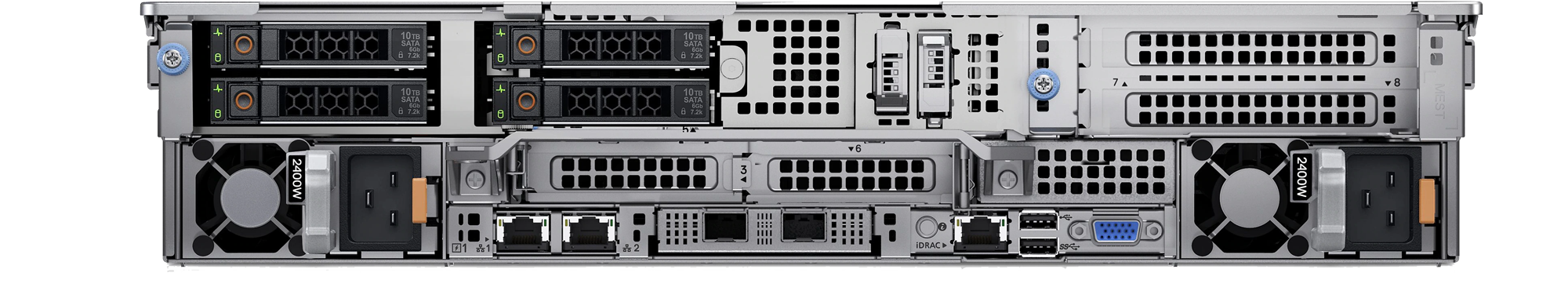

Ports
Front Ports
1 x Dedicated iDRAC Direct micro-USB
2 x USB 2.0
1 x VGA
Rear Ports
1 x USB 2.0
1 x Serial (optional)
1 x USB 3.0
2 x RJ-45
1 x VGA (optional for liquid cooling configuration)
Internal Ports
1 x USB 3.0
Fans
Standard fan/High performance SLVR fan/High performance GOLD fan
Up to six hot plug fans
Embedded NIC
2 x 1 GbE LOM
Network Options
1 x OCP 3.0 (x8 PCIe lanes)
Storage Controllers
Internal Controllers
PERC H745, HBA355I, S150, H345, H755, H755N
External Controllers (RAID)
PERC H840, HBA355E
Boot Optimized Storage Subsystem (BOSS-S2)
HW RAID 2 x M.2 SSDs 240 GB or 480 GB
GPU Options
Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators
Drive Bays
Front Bays
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB
Rear Bays
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Power Supplies
800 W Platinum AC/240 HVDC
1100 W Titanium AC/240 HVDC
1400 W Platinum AC/240 HVDC
2400 W Platinum AC/240 HVDC
Slots
PCie
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
Bezel
Bezel
Optional LCD bezel or security bezel
Form Factor
Form Factor
2U Rack Server
Rack Support
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Recommended Support
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
