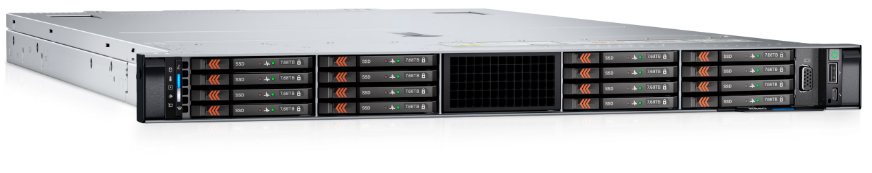

Dell PowerEdge R660 Server

Dell PowerEdge R660 Server

Up to two 4th Gen Intel^® Xeon^® Scalable with up to 56 cores or up to two 5th Gen Intel^® Xeon^® Scalable processors with up to 64 cores per processor
32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Up to 2 NVIDIA Ampere A2, L4 GPUs
Supports air or optional Direct Liquid Cooling

Request Info

Product Detail
Tech Specs & Customization

Features

Performance And Versatility

Gain the performance you need with Dell PowerEdge R660 which is designed to optimize even the most demanding workloads like AI, dense database analytics and high-density virtualization.

Autonomous Infrastructure

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Dell PowerEdge R660 Rack Server Software UI

Cyber Resilient Architecture

Ensure protection at every stage of the product lifecycle with the PowerEdge cyber-resilient architecture, designed to support your journey toward a Zero Trust security strategy.

Tech Specs & Customization

Processor

Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors, with up to 56 cores and optional

Intel® QuickAssist Technology

Up to two 5th Generation Intel Xeon Scalable processors

with up to 64 cores

Operating Systems

Supported Operating Systems

Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ®
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux

SUSE® Linux Enterprise Server

VMware® ESXi®

Bezel

Optional LCD bezel or security bezel

Dimensions

Width

482.0mm (18.97")

Depth

809.04mm (31.85") without bezel
822.88mm (32.39") with bezel

Height

42.8mm (1.68")

Memory

DIMM Speed

32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s

Speeds up to 4800 MT/s on the 4th Generation Intel Xeon

Scalable or Intel Xeon Max processors

Speeds up to 5600 MT/s on the 5th Generation Intel Xeon

Scalable processors

Memory Module Slots

Supports registered ECC DDR5 DIMMs only

Management

Embedded / At-the-Server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish

iDRAC Service Module

Quick Sync 2 wireless module

Consoles

OpenManage Enterprise
OpenManage Power Manager plugin

OpenManage Service plugin

OpenManage Update Manager plugin

CloudIQ for PowerEdge plug in

OpenManage Enterprise Integration for VMware vCenter

OpenManage Integration for Microsoft System Center

OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

BMC® Truesight
Microsoft® System Center
OpenManage Integration with Windows Admin Center

RedHat® Ansible® Modules

Terraform Providers

VMware® vCenter and vRealize Operations Manager

Power Supplies

(All are hot swap with full redundancy)
1400W Titanium 277 VAC or 336 HVDC
1800W Titanium 200-240 HLAC or 240 HVDC

1400W Platinum 100-240 VAC or 240 HVDC

1100W Titanium 100-240 VAC or 240 HVDC

1100W -(48-60) VDC

800W -(48-60) VDC

800W Platinum 100-240 VAC or 240 HVDC

700 W Titanium 200-240 HLAC or 240 HVDC

GPU

GPU Options

Up to 3 x 75 W SW

Security

Cryptographically signed firmware

Data at Rest Encryption (SEDs with local or external key mgmt)

Secure Boot

Secured Component Verification (Hardware integrity check)

Secure Erase

Silicon Root of Trust

System Lockdown (requires iDRAC9 Enterprise or Datacenter)

TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Storage Controller

Internal Controllers (RAID)

PERC H965i, PERC H755, PERC H755N, HBA355i

Internal Boot

Internal Dual SD Module
Boot Optimized Storage Subsystem (BOSS-N1)

HWRAID 2 x M.2 NVMe SSDs or USB

External Controller

PERC HBA355e

SAS HBAs (non-RAID)

HBA355e,HBA355i, HBA465i

Software RAID

S160

Slots

PCie

Up to three PCIe slots

Slot 1

1 x16 Gen5 Full height, 3/4 length, Half length or
1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length

Slot 2

1 x16 Gen5 Full height, 3/4 length, Half length or
1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length

Slot 3

1 x8/ 1 x16 Gen 5 or 1 x16 Gen 4 Low profile, Half length

Form Factor

1U Rack Server

Storage

Front Bays

Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB

Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 179.2 TB

Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 204.8 TB

Rear Bays

Up to 2 x 2.5-inch, SAS/SATA/NVMe max 30.72 TB
Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) max 25.6 TB

Ports

Front Ports

1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

1 x VGA

Rear Ports

1 x Dedicated iDRAC Ethernet port
1 x USB 3.0

1 x USB 2.0

1 x Serial (optional)

1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports

1 x USB 3.0 (optional)
