Cisco UCS S-Series Storage Servers

Data, unstored

Cisco UCS S-Series Storage Servers

Data, unstored

Active data demands agile infrastructure built from ongoing innovation and delivery. The Cisco UCS S-Series Storage Server delivers rapid scalability and performance to activate your data and insights in real time. Our modular architecture lets you right-size infrastructure for the workload and operate with the efficiency and predictable TCO you need.
Cisco-UCS-S3260-Storage-Server

Features

Massive storage capacity

Massive storage capacityData is growing exponentially. The need to scale your storage quickly and cost-effectively is vital. Whether you use spinning disk, SSD, NVMe, or a combination of each, the Cisco UCS S-Series has you covered to scale to Petabytes in minutes.

High performance

High performanceEmerging applications are pushing performance limits as data moves closer to compute. A dual server node architecture using 2nd Gen Intel® Xeon® Scalable processors and Intel Xeon Scalable processors strikes the right balance between compute and capacity.

Architectural flexibility

Architectural flexibilityMaking the right investment in technology can have significant long-term benefits. The Cisco UCS S-Series provides maximum investment protection through multi-generational system design and the flexibility to fit to your unique requirements.

Policy-driven unified storage management

Policy-driven unified storage managementScaling quickly to keep up with data growth is doable only with advanced automation. Simplify management for primary and secondary storage by uniting all compute and storage functions in a single management framework.

like you have never seen before

like you have never seen beforeWhether you are unifying storage with Ethernet, Fiber Channel or FCoE. Or enabling application acceleration with flash memory for tiered caching. Bringing these capabilities together makes the Cisco UCS S-Series stand out from the crowd.

Request Information

To speak with one of our Cisco® Products expert please call us at +1 650-230-8000.
You can also email us at 'sales@asacomputers.com' or simply click on the 'Request Info' button.
Request Info
Cisco-UCS-S3260-Storage-Server

Cisco UCS S3260 Storage Server Data Sheet

Product Overview

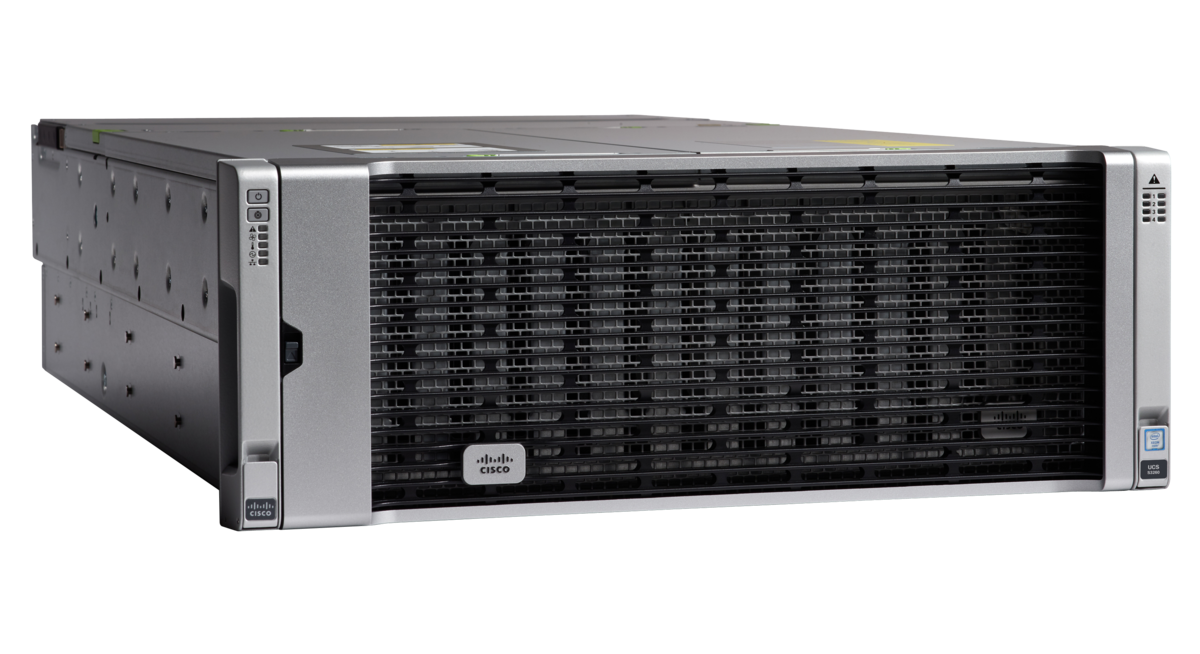

The Cisco UCS® S3260 Storage Server (Figure 1) is a modular, high-density, high-availability, dual-node storage- optimized server well suited for service providers, enterprises, and industry-specific environments. It provides dense, cost-effective storage to address your ever-growing data needs. Designed for a new class of data-intensive workloads, it is simple to deploy and excellent for applications for big data, data protection, software-defined storage environments, scale-out unstructured data repositories, media streaming, and content distribution.

The Cisco UCS S3260 server helps you achieve the highest levels of data availability and performance. With dual-node capability that is based on the 2nd Gen Intel Xeon Scalable and Intel Xeon Scalable processor, it features up to 840 TB of local storage in a compact 4-Rack-Unit (4RU) form factor. The drives can be configured with enterprise-class Redundant Array of Independent Disks (RAID) redundancy or with a pass-through Host Bus Adapter (HBA) controller. Network connectivity is provided with dual-port 40-Gbps nodes in each server, with expanded unified I/O capabilities for data migration between Network-Attached Storage (NAS) and SAN environments. This storage-optimized server comfortably fits in a standard 32-inch-depth rack, such as the Cisco R 42610 Rack.

Product Highlights

  • Dual 2-socket server nodes based on 2nd Gen Intel Xeon Scalable and Intel Xeon Scalable processors with up to 48 cores per server node
  • Up to 1.5 TB of DDR4 memory per M5 server node and up to 1 TB of Intel Optane™ DC Persistent Memory
  • Support for high-performance Nonvolatile Memory Express (NVMe) and flash memory
  • Massive 840-TB data storage capacity that easily scales to petabytes with Cisco UCS Manager software
  • Policy-based storage management framework for zero-touch capacity on demand
  • Dual-port 40-Gbps system I/O controllers with a Cisco UCS Virtual Interface Card 1300 platform embedded chip or PCIe-based system I/O controller for Quad Port 10/25G Cisco VIC 1455 or Dual Port100G Cisco VIC 1495
  • Unified I/O for Ethernet or Fibre Channel to existing NAS or SAN storage environments
  • Support for Cisco bidirectional transceivers, with 40-Gbps connectivity over existing 10-Gbps cabling infrastructure

The Cisco UCS S3260 server uses a multigenerational modular server architecture (Figure 2) and employs Cisco's blade technology expertise to increase investment protection, allowing you to upgrade the main system components (Figure 3) without the need to migrate data from one system to another.

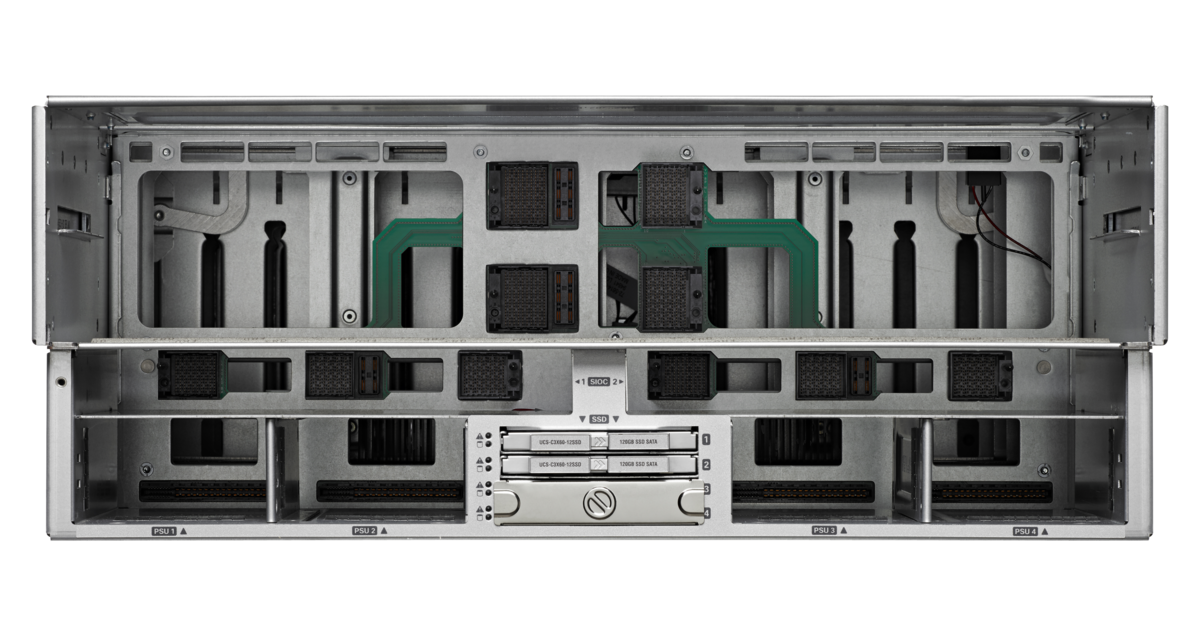

S3260 empty chassis

S3260 empty chassis

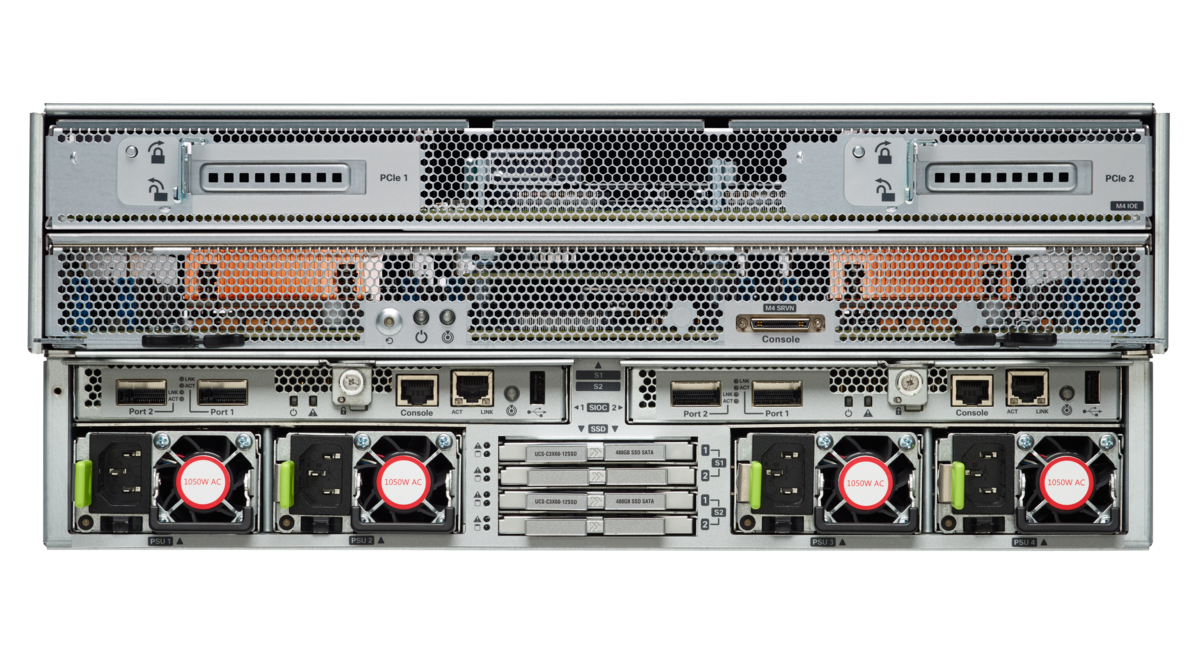

S3260 populated chassis

S3260 populated chassis

Main features

The Cisco UCS B200 M5 server is a half-width blade. Up to eight servers can reside in the 6-Rack-Unit (6RU) Cisco UCS 5108 Blade Server Chassis, offering one of the highest densities of servers per rack unit of blade chassis in the industry. You can configure the B200 M5 to meet your local storage requirements without having to buy, power, and cool components that you do not need.
The Cisco UCS B200 M5 provides these main features:

  • Up to two 2nd Gen Intel Xeon Scalable and Intel Xeon Scalable processors with up to 28 cores per CPU
  • 24 DIMM slots for industry-standard DDR4 memory at speeds up to 2933 MHz, with up to 3 TB of total memory when using 128-GB DIMMs. Up to 12 DIMM slots ready for Intel Optane DC Persistent Memory to accommodate up to 6 TB of Intel Optane DC Persistent Memory
  • Modular LAN on Motherboard (mLOM) card with Cisco UCS Virtual Interface Card (VIC) 1440 or 1340, a 2-port, 40-gigabit Ethernet (GE), Fibre Channel over Ethernet (FCoE)–capable mLOM mezzanine adapter
  • Optional rear mezzanine VIC with two 40-Gbps unified I/O ports or two sets of 4 x 10-Gbps unified I/O ports, delivering 80 Gbps to the server; adapts to either 10- or 40-Gbps fabric connections
  • Two optional, hot-pluggable, Hard Disk Drives (HDDs), Solid-State Drives (SSDs), or Nonvolatile Memory Express (NVMe) 2.5-inch drives with a choice of enterprise-class Redundant Array of Independent Disks (RAID) or pass-through controllers
  • Support for Optional SD Card or M.2 SATA drives for flexible boot and local storage capabilities
  • Support for up to 2 optional GPUs
  • Support for one rear storage mezzanine card
  • Support for one 16-GB internal flash USB drive

Advanced Storage Management

Cisco Unified Computing System (Cisco UCS) management helps significantly reduce management and administration expenses by automating routine tasks to increase operational agility. Cisco UCS management provides enhanced storage management functions for the Cisco UCS S3260 and all Cisco UCS servers. Storage profiles give you flexibility in defining the number of storage disks and the roles and uses of these disks and other storage parameters. You can select and configure the disks to be used for storage by a virtual drive.
A logical collection of physical disks is called a disk group, and a disk group configuration policy defines the way that a disk group is created and configured. A disk group can be partitioned into virtual drives. Each virtual drive appears as an individual physical device to the operating system. The policy specifies the RAID level to be used for the disk group. It also specifies either manual or automatic selection of disks for the disk group and roles for the disks. This feature allows optimization of the storage resources without additional overhead and licensing costs.


Product Specifications

Item
Specifications
Chassis
4RU server
Server nodes
Up to 2 nodes; Cisco UCS S3260 chassis fits in 2 types of server nodes:
M5 server nodes based on 2 nd Gen Intel Xeon Scalable and Intel Xeon Scalable processors
Processors
Appearance Dual Intel Xeon Scalable processors or E5-2600 v4 product family CPUs per server node
M5 server node processors: 2 nd Gen Intel Xeon Scalable processor: 4214, 5218, 5220, 6238, 6240, 6262V, or Intel Xeon Scalable processor: 4110, 4114, 5115, 5117, 6132, 6138, 6152
Processor cores
Up to 48 per server node
Memory
M5 server node: 7 Dual In-Line Memory Module (DIMM) slots per processors with 16-GB, 32-GB, 64-GB, or 128-GB DDR4 registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs). 1 Intel Optane DC Persistent Memory Ready Slot with 128-GB, 256-GB or 512-GB.
NVMe
Up to 4 TB NVMe for M5 server node
System I/O controllers
2 Up to 2 system I/O controllers. Choice of
Onboard Cisco UCS Virtual Interface Card 1300 platform and 2 x 40-Gbps Quad Small Form-factor Pluggable (QSFP) ports (160 Gbps of throughput)
PCIe Slot based with choice of Cisco UCS VIC 1455 Quad Port 10/25G, Cisco UCS VIC 1496 Dual Port 100G, or third-party Ethernet and FC Adapters
I/O expansion module
Dual x8 Peripheral Component Interconnect Express (PCIe) half-height, half-width slots for third-party add-in cards. ( Note: Available with M5 and M4 server node; uses server bay 1.)
Choice of I/O Ethernet and Fibre Channel options:
1 and 10 Gigabit Ethernet or 8- and 16-Gbps Fibre Channel
Application acceleration with support for PCIe-based flash memory:
1000 or 3200 GB
Storage controller
RAID controller:
M5 server node: Dual-chip RAID controller based on LSI 3316 ROC with 4-GB RAID cache per chip and Supercap Supports:
Controller support for RAID 0, 1, 5, 10, 50, and 60 and JBOD mode, providing enterprise-class data protection for all drives installed in the system
Pass-Through Controller:
Dual Chip Pass-Through Controller with LSI IOC 3216 using LSI IT Firmware
Drives
Up to 56 top-accessible, hot-swappable 3.5-inch, 2-, 4-, 6-, 8-, 10-, 12-, or 14-TB 7200-RPM NL-SAS Hard-Disk Drives (HDDs).
Up to 28 top-accessible, hot-swappable 400-GB, 800-GB, 1.6-TB, or 3.2-TB SAS Solid-State Drives (SSDs)
Up to 2 rear-accessible, hot-swappable, 2.5-inch, 120-, or 480-GB SATA or 1.6-TB SSDs per server node
Note: These boot drives support Hardware RAID with the M4 and M5 server node connected to the RAID controller on the server node. These boot drives support SW RAID when using the pass-through storage controller. All drives are hot pluggable.
Disk expansion module
Expand data storage capacity with up to 4 rear-accessible, hot-swappable, 3.5-inch, 2-, 4-, 6-, 8-, 10-, 12-, or 14-TB, 7200-RPM NL-SAS HDDs. ( Note: These drives are installed in server bay 2.)
Power supplies
4 hot-pluggable, N+N redundant 1050-Watt (W) AC or DC 80 PLUS Platinum efficiency power supplies
Cisco Integrated Management Controller (IMC)
Integrated Baseboard Management Controller (BMC):
IPMI 2.0 compliant for management and control
One 10/100/1000 Ethernet out-of-band management interface
Command-Line Interface (CLI) and web GUI management tool for automated, lights-out management
Keyboard, video, and mouse
HTML5 interface
Protocols
Fibre Channel, Fibre Channel over Ethernet (FCoE), Network File System (NFS), Server Message Block (SMB), SMB Direct, and Small Computer System Interface over IP (iSCSI).
Physical unit
4RU height x 32-in. depth.
High reliability, availability, and serviceability features with tool-free server nodes, system I/O controller, easy-to-use latching lid, and hot-swappable and hot-pluggable components.
Operating systems
Microsoft Windows Server 2019, 2016; Red Hat Enterprise Linux; SUSE Linux; or VMware vSphere.
