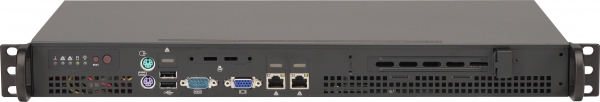

ASA1135-A1D-S2-S 1U SHORT DEPTH SERVER
ASA1135-A1D-S2-S 1U short depth server

ASA1135-A1D-S2-S 1U SHORT DEPTH SERVER

SKU: ASA1135-A1D-S2-S 1U SERVER
ASA1135-A1D-S2-S 1U Short Depth Server



  • Intel® Atom™ D525I
  • Intel® ICH9R Chipset
  • Up to 4GB single channel unbuffered, non-ECC DDR3 800MHz SO-DIMM
  • 1x 3.5" Internal Drive Bay OR 2x 2.5" Internal Drive Bay (Optional)
  • 2x Intel 82574L Gigabit LAN
  • 1 (x4) PCI-E (in x16 slot)
  • 8x USB 2.0 ports (2 rear ports + 5 via headers + 1 Type A connector)
  • 200W Low Noise Power Supply



For cross-shipment warranty please contact sales department by call (650-230-8000 or 1800-732-5727) or by email at sales@asacomputers.com

Starting Configuration: $410.00

Processor/Cache
System Bus
DMI
System Memory
Memory Capacity
Two 204-pin SO-DIMM sockets

"Supports up to 4 GB of unbuffered, non-ECC DDR3 800MHz SO-DIMM (Single Channel)"

"Some 1066MHz and 1333MHz memory can be used, but will operate at 800MHz"
Memory Type
"DDR3 800MHz unbuffered, non-ECC SO-DIMM"
DIMM Sizes
"256 MB, 512 MB, 1 GB, 2GB"
Memory Voltage
1.5V only
On-Board Devices
Chipset
Intel ICH9R

Intel 82574L
SATA
Intel ICH9R SATA 3.0Gbps Controller

"RAID 0, 1, 5, 10 support (Windows Only)"
Network Controllers
2x Intel 82574L Gigabit Ethernet

"Supports 10BASE-T, 100/1000BASE-TX, RJ45 output"
Graphics
Onboard Intel GMA3150 video
Super I/O
Winbond 83627DHG chip
Input / Output
Serial ATA
6 Serial ATA ports ( 3Gbps )
LAN
2x RJ45 LAN port
USB
8x USB 2.0 / 1.1 compatible

2 rear + 5 via headers + 1 Type A connector
VGA
D-Sub 15
Keyboard / Mouse
PS/2 keyboard and mouse ports
Serial Ports
1x Fast UART 16550 serial port

1x Serial Header
System BIOS
BIOS Type
8Mb Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)

DMI 2.3

PCI 2.2

ACPI 1.0 / 2.0 / 3.0

USB Keyboard support

SMBIOS 2.3
Expansion Slots
PCI-Express
1 (x4) PCI-Express (in x16 slot)
Dimensions
Height
"1.7"" (43mm)"
Width
"17.2"" (437mm)"
Depth
"9.8"" (249mm)"
Gross Weight
10 lbs (4.5kg)
Available Colors
Black
Management
Power Configurations
ACPI/APM Power Management

Main Switch Override Mechanism

Suspend to RAM (STR)

Power-on mode control for AC power recovery

Internal / External modem remote ring-on
Drive Bays
Internal Bay
"1x 3.5"" Internal Drive Bay (Standard)"

"OR 2x 2.5"" Internal Drive (Optional)"

"OR 1x 2.5"" (Optional)"

SAS or enterprise SATA HDD only recommended
